SMB Female 3 Piece Crimp Connector for RG-316 Coax Cable

Easy-to-Install SMB Female Crimp Connector

This SMB Female 3 Piece Crimp Connector is designed for quick and reliable connections to RG-316 coaxial cable. Ideal for everyday projects, repairs, or custom cable builds, this inline SMB female connector ensures a secure and professional finish with minimal effort.

Quality Construction and Dependable Performance

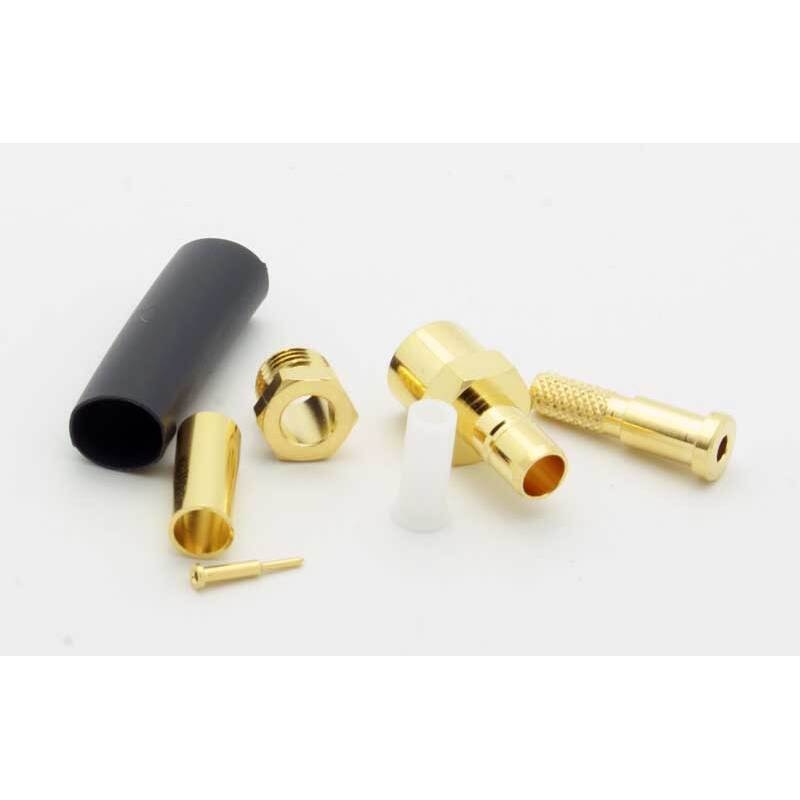

The connector features a robust “3 piece” design. The center pin is soldered onto the center conductor of the RG-316 coax cable, while the body is crimped for a strong hold using the included ferrule. Gold plated brass or copper conductors ensure excellent electrical contact and corrosion resistance, making this SMB crimp connector a smart choice for lasting performance.

Technical Specifications

• Type: SMB Female 3 Piece Crimp Connector
• Cable Compatibility: RG-316 Coax Cable
• Connection Method: Solder center pin, crimp outer body
• Plating: Gold plated
• Material: Brass or copper conductors
• Included: Heatshrink and ferrule for RG-316
• Overall Dimensions: 0.97″ Length x 0.25″ Diameter
• Quantity: 1 connector per package

How to Use Your SMB Female Crimp Connector

1. Strip the RG-316 coaxial cable to reveal the center conductor and shield.
2. Solder the center pin onto the center conductor for a robust connection.
3. Slide the connector body into place and crimp it using the included ferrule over the shield.
4. Finish with the included heatshrink for added protection and a clean look.

This SMB female connector is perfect for amateur and professional radio projects, custom coaxial assemblies, and making reliable RF connections at home or in the field.
