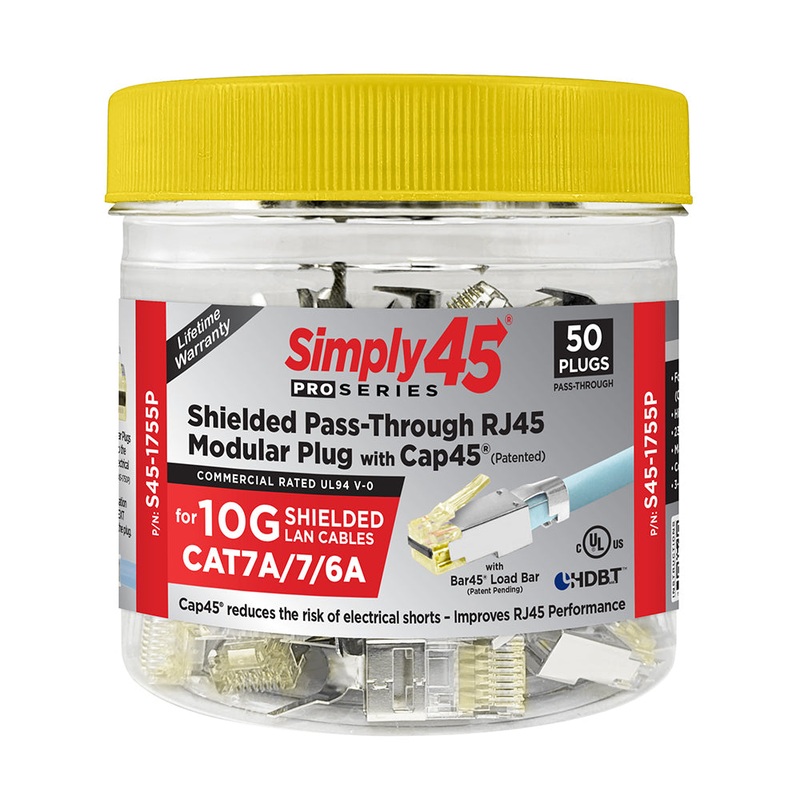

S45-1755P ProSeries 10G Shielded External Ground Pass Through RJ45 with Cap45 & Bar45

Simply45 ProSeries Pass Through RJ45 Mod Plug- Shielded External Ground for 23AWG Solid, FPE Insulated 10G STP LAN Cables (Cat7a/7/6a) & 23AWG Solid, PE Insulated Cat6/6a STP, Hi/Lo Stagger, Wire Conductors 1.15mm-1.35mm/0.045-0.053, 2pc Plug with CAP45, Bar45 Load Bar, Max Cable OD 8.0mm (0.315), UL94 V0 Commercial Rated, Yellow Tint 50pcs/Plastic Jar

Simply45the industry-leading brand for RJ45 modular plug innovation and performance solutions introduces ourProSeries Shielded with External Ground Pass-Through RJ45 Modular Plug,S45-1755P. The uniquely designed and patentedSimply45ProSeries S45-1755Psimplifies and improves the terminated plug performance for shielded 10G LAN cables. TheSimply45 ProSeriesS45-1755PPass-Through RJ45 modular plugs are by far the highest performing, easiest to use, and most cost-effective way to professionally terminate 10G Shielded and other large diameter shielded LAN cables.

TheS45-1755Pare IEEE 802.3 10GBase-T compliant and are recommended for shielded 10G LAN Cables Cat7a/7/6a with FPE insulated wires, and Large OD Shielded LAN cables with PE insulated wires such as Cat6 STP and Cat6a F/UTP. These plugs include some unique features that simplify the RJ45 10G termination process and improve the terminated plug performance.

Simply45 ProSeriesintroduces the exclusiveCap45(PATENT: 10,811,831 B1).Cap45is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends.Cap45prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. WithCap45, any electrical risks associated with exposed wire ends are now eliminated completely.

Cap45 is aMUST HAVEfor all pass-through RJ45 modular plugs used in commercial and certified system terminations.

Learn more about theSimply45ProSeries innovations in ourProSeries Product Linesection.

OurS45-1755P ProSeries Pass Through RJ45modular plugs incorporate the following features:

Two-Piece Plug. We tried all that we could to use a one-piece design, but it proved too difficult to work with during the testing trials. As such, we separated the metal shell shield from the RJ45 body. This allowed us to make additional modifications and the result is a dramatically improved termination process that isfaster and easier to use. Separating the plug body from the metal shield allows the large diameter 10G LAN cables to be inserted further into the plug. This is a significant advancement in RJ45 design because this feature improves NEXT performance by reducing the length of untwisted wires inside the plug. Please refer to our Technical Bulletin Its All About Those Twists for more information on how this feature raises RJ45 performance.

TheS45-1755Psupports performance standards: ANSI/TIA 568.2-D for Cat7a/7/6a/6; ISO/IEC 11801 Class F, Ea, and E. Supports 10GBaseT performance applications over shielded twisted pair cables.

Bar45 Load Bar Again, we tried everything we could to avoid using a load bar for the shielded pass-through plugs, but without a load bar, we could not achieve the desired IEEE 802.3 10GBASE-T performance levels we were demanding. The uniquely designedBar45load bar does 3 things:

1. Bar45is made of a material that provides better signal isolation improving NEXT performance;
2. Bar45Improves the signal integrity by reducing the length of open untwisted wires inside the plug;
3. Bar45is the easiest and fastest load bar to use for 10G LAN cable termination. No more headaches fiddling with the wires trying to get them to fit through the front of the pass-through RJ45 plug.Bar45makes it so easy.Learn more about Bar45 here.

Cap45(PATENT: 10,811,831 B1).Cap45is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends.Cap45is fast and easy to use. Fits all compliant RJ45 sockets. WithCap45, any electrical risks associated with pass-through RJ45 modular plug exposed wire ends are now eliminated completely. Learn more aboutCap45in ourProSeries Product Linediscussion. If you dont want to useCap45, no problem. It will not affect plug performance. You just wont have theCap45 benefits.

High/Low Staggered Wire Insert. LAN cable wire conductors are easily inserted into theS45-1755Pin a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. TheS45-1755P is recommended for shielded 10G LAN cables and other large-diameter shielded LAN cables. It accommodates both FPE (Foam PE) and PE-insulated wires. Wire conductor sizes for 23 AWG Solid from 1.15mm to 1.35mm (0.045- 0.053).

Accommodates Large Diameter Shielded LAN Cables. TheS45-1755P is the perfect RJ45 for large-diameter shielded 10G LAN cables such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP, F/FTP, and F/UTP constructions. Also recommended for large diameter shielded Cat6 F/UTP LAN cables. Works with a multitude of jacket materials: PVC, Plenum, LSZH, Extruded, and even PUR. The maximum LAN cable diameter is 8.0mm (0.315).

3 Prong Pin Designwith 50 of True 24ct Gold Plating. AllSimply45 pass-through RJ45 modular plugs use only 50 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50 24ct gold-plated contacts, pleaseclick here.

Improved Crosstalk Performance. TheS45-1755Pincorporates an exclusive and unique combination of features that work together to improve the Crosstalk performance of the shielded pass-through RJ45 modular plug. No other shielded pass-through RJ45 performs as well as theS45-1755P. These innovative features include a revolutionary plug design, theBar45load bar, andCap45. TheS45-1755P ProSeries plugis aMUST-HAVEfor terminating all shielded 10G LAN cables.

Commercial Rated. These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM; and LSZH up to B2ca rated LAN cables.

Color Tinted RJ45 Modular Plugs. TheS45-1755Pcomes with a Yellow tint for easy pass-through RJ45 modular plug identification. No more trouble identifying which plug is which. AllSimply45RJ45 modular plugs are color-coded for easy identification.

Wide Mouth Jar for Easy Hand Access. No need to spill RJ45 mod plugs out of the jar just to reach them. Most hands (unless you are Shrek) can easily reach the last plug in the jar.

Color-Coded Jar Caps. TheS45-1755Pjar cap is Yellow matching the color tint of the RJ45 mod plug. This makes it very easy to find to identify the items in your bag or kit. Saves time identifying the RJ45 modular plugs that you need to use.

UL Listed. TheS45-1755Ppass-through RJ45 modular plugs are UL Listed and bear the UL Logo on theSimply45packaging. OnlySimply45provides the UL Listed logo for quality and safety on pass-through RJ45 modular plugs. UL is the strictest 3rdparty verification service in the world and products bearing the UL mark represent the highest quality and safety standards.

PoE/PoH Rated. TheS45-1755P ProSeries is the BEST shielded Pass-Through RJ45 modular plug for 10G and other large-diameter shielded LAN cables. TheS45-1755Pis recommended whenever PoE or PoH may be used over shielded 10G LAN cables. In addition to the correct 3-Prong Pin design; true 24ct gold plated pins; highest quality RJ45 materials used in our pass-through RJ45 plugs; theS45-1755Pincorporates a revolutionary plug design, theBar45load bar, andCap45working together to ensure the lowest resistance and lowest heat build-up of any other shielded pass-through RJ45 for large diameter shielded LAN cables.

Compliant with Industry Standards. ANSI/TIA 568.2-D for Cat6 and Cat6a, 1096-A; ISO/IEC 11801 Class F, Ea, E; 60603-7; 8877:1992; FCC

Lifetime Warranty. We are so certain that you will be pleased with the performance of ourS45-1755Pthat we now offer a Lifetime Limited Warranty. For more details on our Lifetime Limited Warranty, pleaseclick here.

PATENT: 10,811,831 B1
