Reverse TNC Male 3 Piece Crimp Connector for LMR-400 Coax

Easy-to-Install Reverse TNC Male Crimp Connector

Upgrade your coaxial connections with this Reverse TNC Male 3 Piece Crimp Connector, designed specifically for LMR-400 coaxial cable. This reverse polarity TNC male connector offers secure, reliable signal transmission for antennas, WiFi equipment, routers, and more.

Key Features & Benefits

• Reverse TNC Male Plug: Standard TNC body with a female center socket for reverse polarity installations.
• 3-Piece Crimp Design: The center pin is soldered to the LMR-400 cables center conductor, while the connector body is crimped using the included ferrule for a solid, vibration-resistant connection.
• Reliable Materials: Quality nickel-plated body with easy-grip knurled surfaces. Gold-plated brass or copper conductors ensure optimal signal transfer and corrosion resistance.

Technical Specifications

• Compatibility: LMR-400 coaxial cable
• Design: Reverse polarity TNC male connector, inline/line mount
• Body Material: Nickel plated
• Contact Material: Gold plated brass or copper
• Dimensions: 1.37″ (35mm) Long x 0.57″ (14.5mm) Diameter

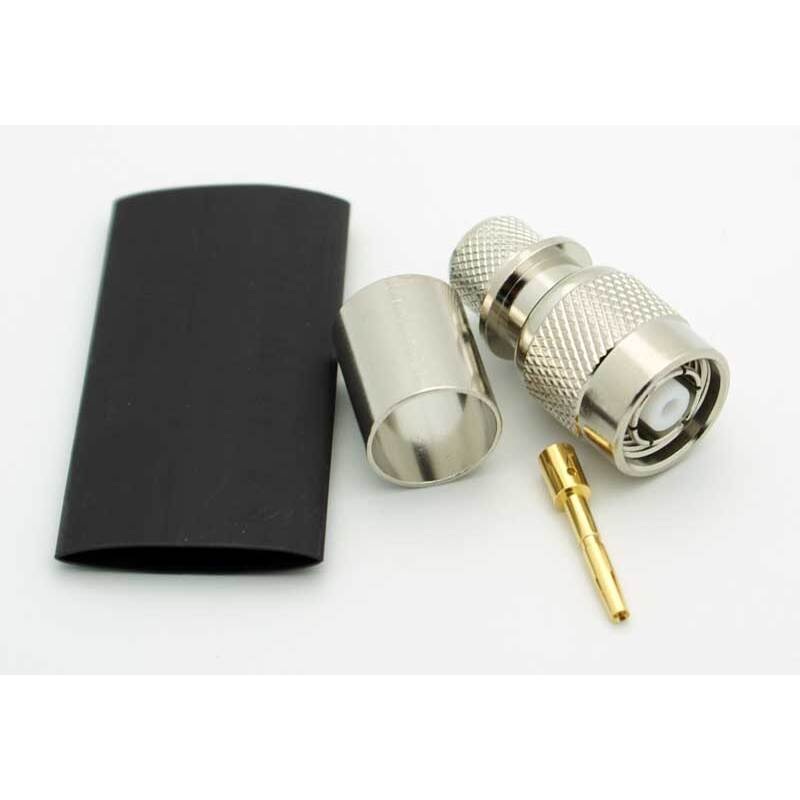

• Pieces Included: Center pin, body, and ferrule
• Quantity: 1 connector

How to Use

1. Strip your LMR-400 coaxial cable to expose the center conductor and shield.
2. Solder the included pin to the center conductor.
3. Slide the ferrule over the cable.
4. Insert the cable and pin assembly into the connector body.
5. Crimp the ferrule onto the cable using a crimp tool compatible with LMR-400 connectors.

Perfect for Home and Hobby RF Projects

This reverse polarity TNC male crimp connector is ideal for quick repairs, custom cable assemblies, or upgrading your WiFi and radio setups. Enjoy strong, stable connections every timeno special skills required.
