Reverse TNC Female Crimp Connector for RG-58 Coax

Easy-to-Use Reverse TNC Female 3-Piece Crimp Connector

This Reverse TNC Female Crimp Connector is designed for quick and secure installations with RG-58 coaxial cable. Perfect for repairs and new coax runs, this connector features a reverse polarity TNC female interface, making it compatible with devices requiring reverse-polarized connections.

Features & Benefits

• Reverse Polarity TNC Female Connector Inline/line mount style for versatile use.

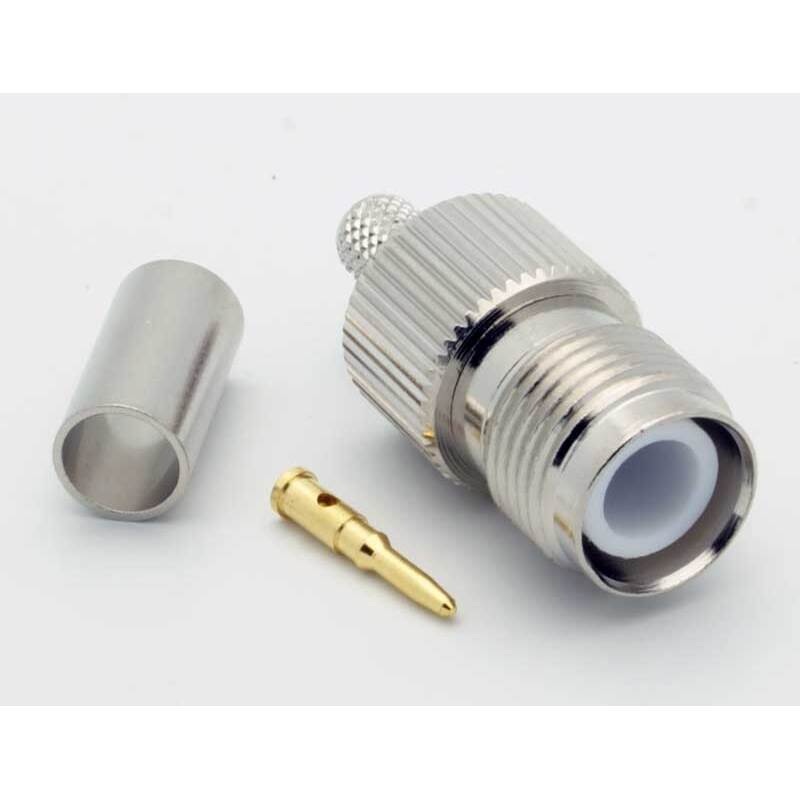

• 3-Piece Crimp Design The center pin is soldered to the coax center conductor, and the connector is crimped to the cable using the included ferrule for a reliable, long-lasting connection.
• High-Quality Build Nickel-plated body with knurled grips for easy handling and a secure fit.
• Gold-Plated Conductors Gold-plated brass or copper contact for optimal signal conductivity and corrosion resistance.
• Compatible with RG-58 Coax Cable Designed specifically to fit standard RG-58 coax, widely used in RF and wireless applications.

Technical Specifications

• Type: Reverse TNC Female 3-Piece Crimp Connector
• Polarity: Reverse (female body with male pin)
• Mount: Inline / Line Mount
• Cable Compatibility: RG-58 Coax
• Plating: Nickel-plated body with gold-plated brass or copper contacts
• Dimensions: 1.28″ (Length) x 0.48″ (Diameter)
• Quantity: 1 connector per package

Installation Instructions

1. Strip the RG-58 cable to expose the center conductor and outer braid according to standard TNC connector prep dimensions.
2. Solder the provided center pin onto the center conductor.
3. Slide the ferrule onto the coax and insert the prepared cable into the connector body.
4. Crimp the ferrule securely for a reliable connection.

Upgrade your RF connections with this easy-to-install Reverse TNC Female Crimp Connector, perfect for home, hobby, and professional coax applications using RG-58 cables.
