Reverse SMA Male 3-Piece Crimp Connector for LMR-240 Coax

Easy-to-Install Reverse SMA Male Crimp Connector

This Reverse SMA Male 3-Piece Crimp Connector is designed for use with LMR-240 coaxial cable. It features an inline (line mount) setup that delivers a reliable connection for your RF projects, antennas, WiFi equipment, and more. Perfect for everyday DIY users and installers, this connector is both easy to use and highly dependable.

Key Features & Benefits

• Reverse Polarity SMA Male: Standard body with a female socket for compatibility with reverse polarity SMA systems.

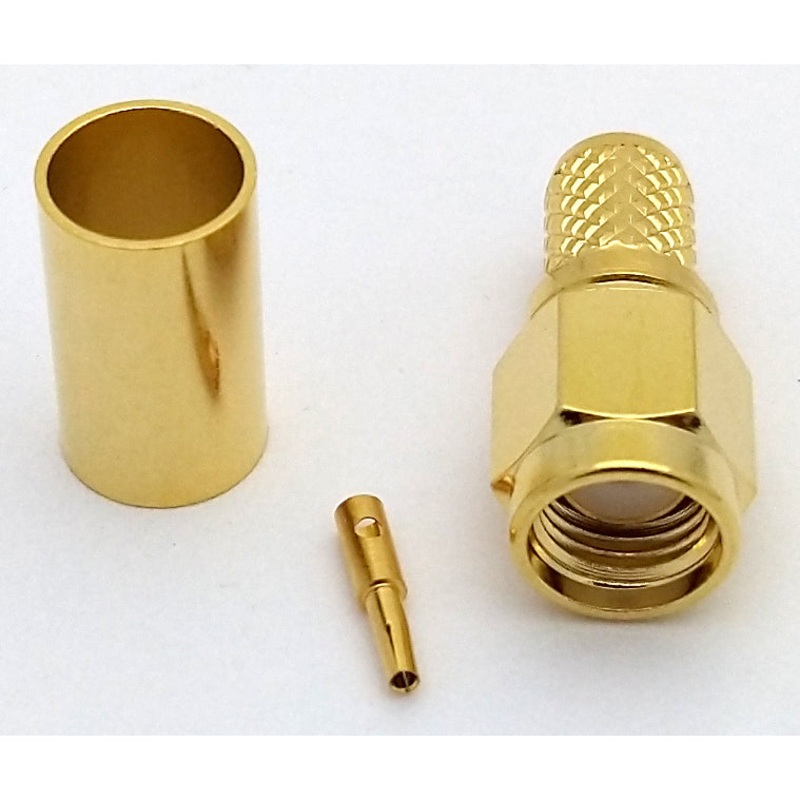

• 3-Piece Design: Secure and professional connection. Solder the center pin to the center conductor, then crimp the connector and ferrule in place.
• Quality Materials: Gold-plated brass or copper conductors for excellent signal transmission; nickel-plated connector body for long-lasting protection and durability.
• Knurled Grips: Easy handling and simple installation, even for beginners.

Technical Specifications

• Compatible Cable: LMR-240 Coaxial Cable
• Connector Gender: Reverse Polarity SMA Male (RP-SMA Male)
• Body Material: Nickel-plated
• Contact Material: Gold-plated brass or copper
• Dimensions: 1.25″ (length) x 0.70″ (diameter)
• Assembly: 3-piece crimp style (solder-on center pin included)
• Quantity: 1 Connector
• Product ID: SMA-03L2-RP-TGG

How to Use

1. Strip LMR-240 coax cable to expose the center conductor and outer braid.
2. Solder the included center pin onto the center conductor for a secure electrical connection.
3. Slide the body of the SMA connector onto the cable, followed by the ferrule.
4. Crimp the ferrule for a strong, high-quality attachment that won’t work loose.

Why Choose This Reverse SMA Male 3-Piece Crimp Connector?

If you need a dependable, easy-to-install Reverse SMA Male connector for LMR-240 coaxial cable, this 3-piece crimp version offers both simplicity and professional performance. It’s ideal for RF adapters, routers, antennas, WiFi modifications, and custom coaxial cable assemblies.
