manufacturer: Philore
manufacturer part number: 30-10835

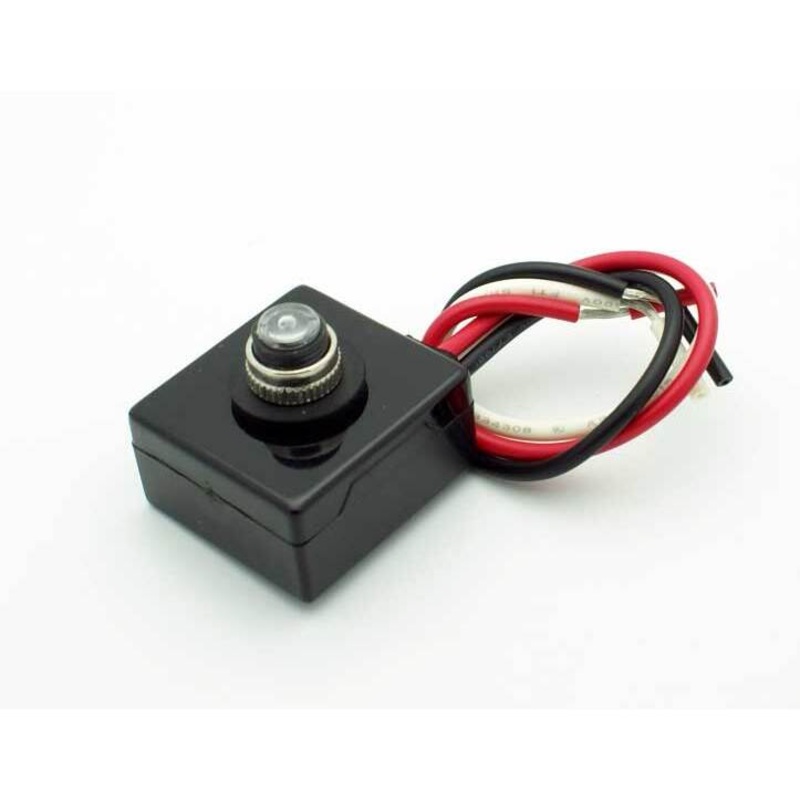

This small, light-sensitive switch is simple to hook up and can control loads up to 250 Watts. It is normally used as a “dusk to dawn” sensor or switch, turning on landscape or outdoor lighting at dark and back off again in the morning. It can be used with most loads, but inductive loads work best (incandescent bulbs, halogen lights, etc). LED bulbs work well but CFLs should be avoided but will work if de-rated to 60 watts. Easy to install with color-coded wire leads. Connect the sensor to the hot and neutral wires, then connect the red wire to the hot side of your load (replaces the hot ac wire normally connected to your device). Weather resistant, can be panel mounted in a 3/8″ hole (for the sensor).

Wiring instructions: WARNING: Household voltages are hazardous and should always be worked on by qualified personnel. Vetco takes and assumes no responsibility for incorrect wiring or damage that occurs from incorrect installation or otherwise.

Black wire: Hot (to incoming hot)
White wire: Common (Connect to both the incoming and the lights common)
Red Wire: Hot, switched via photocell (Wire to hot on light)
