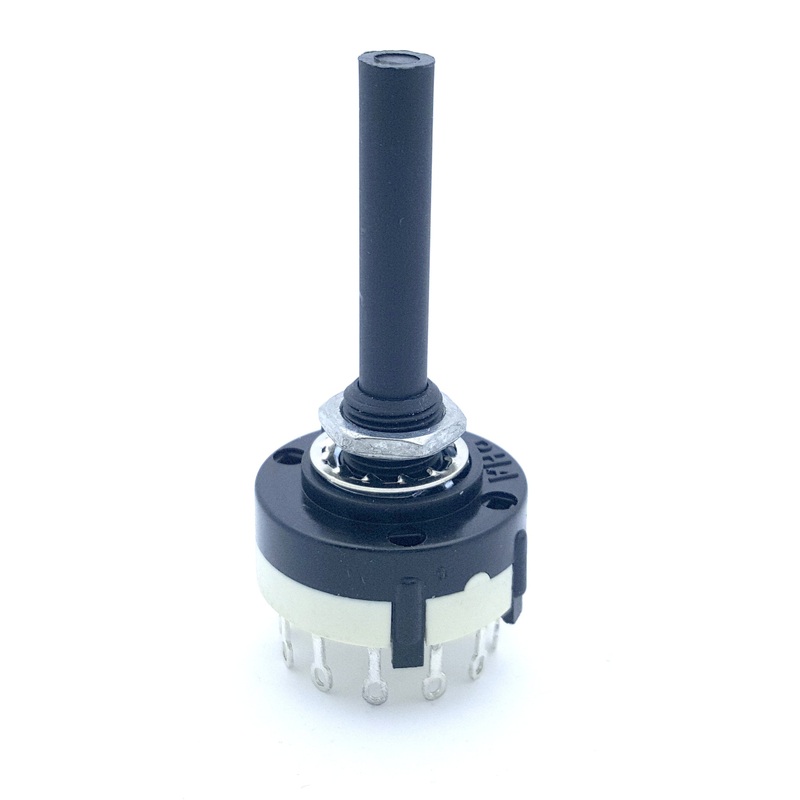

Philmore 30-15100 12-Position 1-Pole Enclosed Contact Rotary Switch

Reliable 12-Position Rotary Switch for DIY and Electronics Projects

Upgrade your next project with the Philmore 30-15100 12-position rotary switch. Designed for everyday consumers, electronics hobbyists, and DIY tinkerers, this versatile 1-pole rotary switch provides reliable control and easy selection across 12 non-shorting positions.

Key Features of the Philmore 30-15100 Rotary Switch

• 12-position rotary switch for multi-channel control
• 1-pole, non-shorting (break-before-make) contacts ensures only one connection at a time
• Enclosed contact rotary switch design helps protect contacts from dust and contaminants
• Solder terminals for secure, easy installation and long-lasting reliability
• Durable 38mm shaft (6.35mm diameter) for comfortable panel mounting and adjustment

Technical Specifications

• Rated Current: 0.3A @ 125V AC
• Initial Contact Resistance: Max. 20 milliohms
• Insulation Resistance: Min. 100 megohms @ DC 500V
• Withstand Voltage: 500V AC for 1 minute
• Rotation Torque: 1.0 0.5 kg/cm
• Shaft Length: 38mm
• Shaft Diameter: 6.35mm (1/4″)
• Terminal Type: Solder lugs

Why Choose This Philmore 12-Position Non-Shorting Rotary Switch?

Whether you’re building an audio selector, customizing vintage equipment, or replacing a worn-out switch in a project box, the Philmore 30-15100 offers smooth, positive action and reliable performance. Its enclosed contact design adds extra protection for longer life, while the non-shorting operation prevents cross-channel interference.

Works great in audio gear, control panels, ham radios, test instruments, and custom electronics projects. Its simple enough for beginners and robust enough for seasoned makers.

Notes and Warnings

• Rated for up to 0.3A at 125V AC. Exceeding these limits may damage the switch.
• Requires soldering for installation.
• Non-shorting (break-before-make) rotary switch: Only one position is connected at any moment during switching.

Looking for a dependable 12-position 1-pole rotary switch? The Philmore 30-15100 is a great choice for your next electronics or hobby project.
