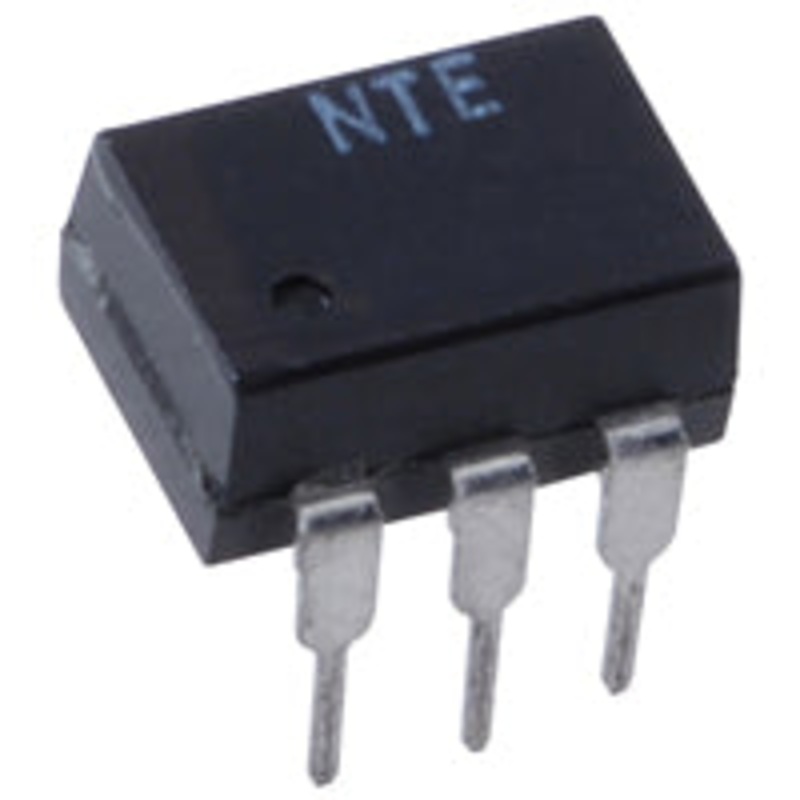

Optoisolator with NPN Photodarlington Output, 6-Pin DIP

NTE3044 Optoisolator for High-Sensitivity Applications

The NTE3044 optoisolator is engineered for demanding applications requiring reliable signal isolation and high sensitivity. Featuring a photodarlington output in a 6-pin DIP package, this optocoupler provides superior isolation for digital interfaces, appliances, programmable controllers, and measuring instruments.

Key Features: NTE3044 Optoisolator

• NPN photodarlington output for high current transfer ratio
• 6-pin DIP package for straightforward PCB integration
• High isolation voltage between input and output circuits
• Designed for use in I/O interfaces and low input current applications
• Package contains 1 optoisolator per unit
• NTE part number: NTE3044

Technical Specifications

• Output Type: NPN photodarlington
• Package Style: 6-pin Dual In-line Package (DIP)
• No. Per Package: 1

Typical Applications

• Isolation of signal lines in digital systems
• Programmable logic controllers (PLC)
• Appliances and automation equipment
• Measuring and test instruments
• I/O interface circuits

Reliable Isolation Performance

The NTE3044 optoisolator provides robust isolation and signal transmission for critical electronic designs. Its photodarlington output ensures a high current transfer ratio, making it suitable for applications demanding increased sensitivity and noise immunity. With a widely compatible 6-pin DIP package, the NTE3044 simplifies mounting and integration into new and existing circuit layouts.

This part is the equivalent replacement for the following:

ECG3044, H11G2, M0C8030, MOC119, MOC8030, NTE3044, SK4935, SK4935/3044, TIL119, TLP576
