High-Speed CMOS Buffer Octal 3-State Output

High-Performance Octal Buffer/Line Driver

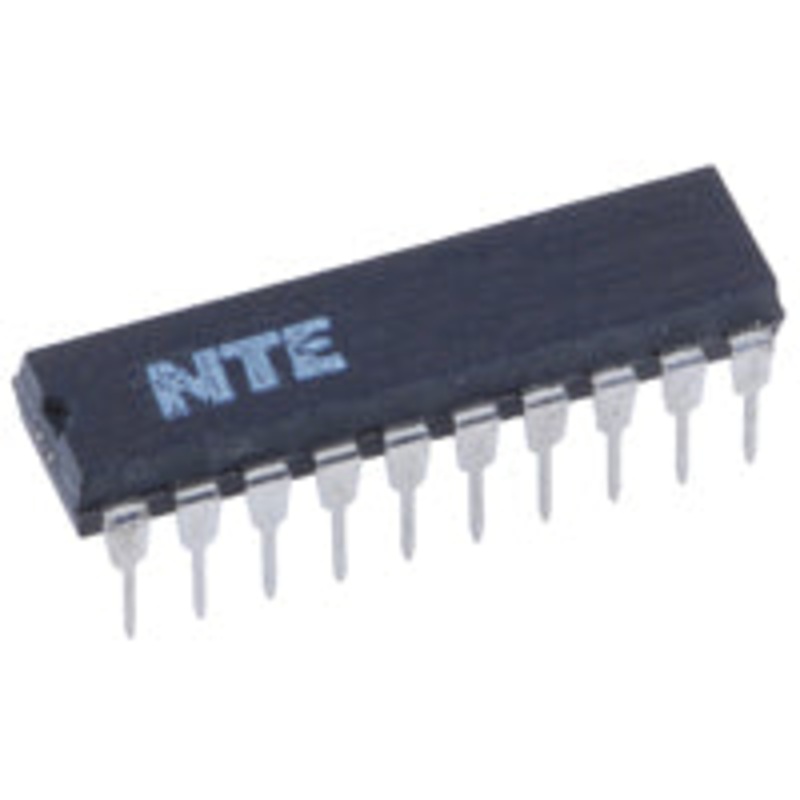

The NTE74HC244 is a high-speed CMOS buffer IC designed for fast and reliable signal buffering in digital systems. This octal buffer features three-state outputs, making it ideal for bus-oriented applications where multiple devices need to share data lines efficiently.

Technical Specifications

• Part Number: NTE74HC244
• Type: High-Speed CMOS Buffer
• Number of Channels: 8 (Octal Buffer)
• Output Type: 3-State
• Logic Technology: CMOS
• Quantity per Package: 1

Typical Applications

• Digital bus drivers in microprocessor systems
• Data line buffering and signal isolation
• High-speed data transmission in logic circuits

Usage Instructions

Insert the NTE74HC244 into your circuit with appropriate orientation, ensuring proper handling of three-state controls to manage its output enable functions. Ideal for use as a buffer or line driver where reliable, high-speed data transfer is required on shared data lines.

This part is the equivalent replacement for the following:

1820-3297, 551-145-00, 612535-0244, 6125350244, 612535-244, 74HC244, 74HC244N, 8-759-202-55, BU74HC244, CD74HC244, CD74HC244E, ECG74HC244, GD74HC244, HD74HC244, HD74HC244P, IG107200, IR024400, IR024450, M74HC244, M74HC244B1, M74HC244B1N, M74HC244P, MC74HC244, MC74HC244N, MLC74HC244, MLC74HC244A, MLC74HC244N, MM74HC244, MM74HC244N, MN74HC244, MSM74HC244RS, NJU74HC244N, NTE74HC244, PC74HC244, PC74HC244P, SK7C244, SN74HC244, SN74HC244N, TC74HC244, TC74HC244AP, TC74HC244P, UPD74HC244, UPD74HC244C
