High-Speed CMOS Hex Inverting Schmitt Trigger IC 74HC14

Overview: 74HC14 High-Speed CMOS Schmitt Trigger

The 74HC14 is a high-speed CMOS hex inverting Schmitt trigger featuring six independent inverters with Schmitt trigger inputs. Engineered for digital circuit designs requiring reliable signal inversion and conditioning, this IC ensures high noise immunity and rapid response times. Its Schmitt trigger action transforms slow or noisy signals into fast, clean digital outputs, making it an essential component for demanding logic applications.

Key Features & Technical Data

• Part Number: NTE74HC14
• Logic Family: High-Speed CMOS
• Function: Hex inverting buffer with Schmitt trigger inputs
• Operating Voltage Range: 2V to 6V
• Package: 14-pin DIP
• Input Type: Schmitt triggerprovides enhanced noise rejection
• Inverter Count: 6 independent gates per IC
• High noise immunity and fast switching performance

Applications for the 74HC14 Schmitt Trigger

• Signal conditioning to convert slow or noisy analog signals to clean digital outputs
• Switch debouncing for mechanical switches
• Oscillator and waveform shaping circuits
• General-purpose logic inversion in digital designs

Package Details

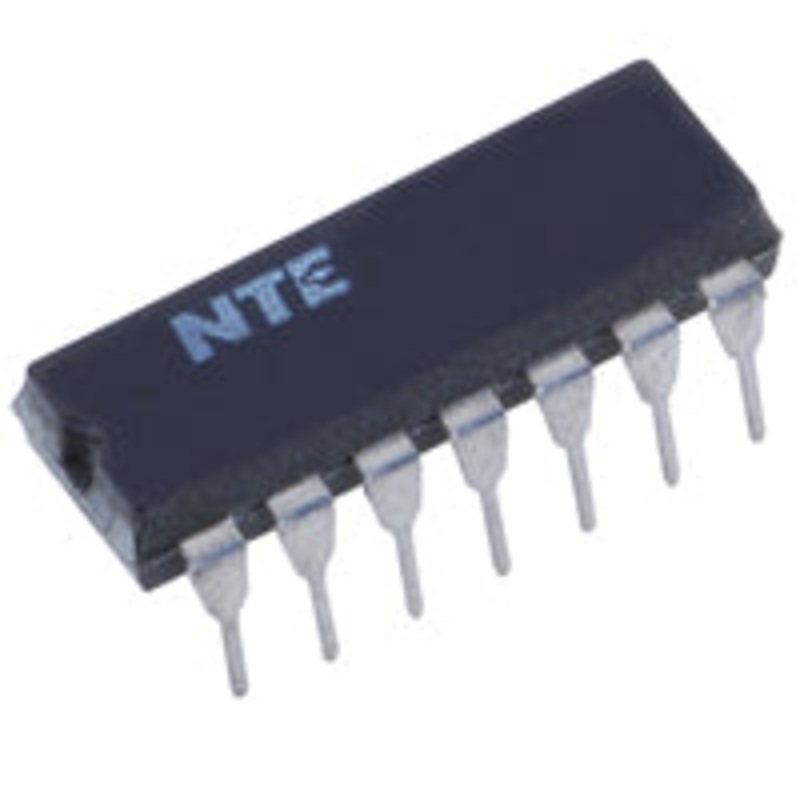

Each 74HC14 Schmitt trigger IC is supplied in a standard 14-pin dual in-line package (DIP). Quantity per package: 1.

For engineers and designers seeking a high-speed, reliable Schmitt trigger inverter, the 74HC14 provides robust performance and dependable signal integrity in both standard and noisy digital environments.

This part is the equivalent replacement for the following:

1820-3185, 46-756157-3, 612535-0014, 6125350014, 612535-14, 74HC14, 74HC14N, 8-759-202-17, BU74HC14, CD74HC14, CD74HC14E, ECG74HC14, GD74HC14, HD74HC14, HD74HC14P, IR001400, IR001450, LR74HC14, M74HC14, M74HC14B1, M74HC14B1N, M74HC14P, MC74HC14, MC74HC14N, MLC74HC14, MLC74HC14A, MM74HC14, MM74HC14N, MN74HC14, MSM74HC14RS, NJU74HC14N, NTE74HC14, PC74HC14, PC74HC14P, SK7C14, SN74HC14, SN74HC14N, TC40HC14, TC74HC14, TC74HC14AP, TC74HC14P, UPD74HC14, UPD74HC14C
