High-Speed CMOS Dual JK Flip-Flop NTE74HC109

Reliable State Control with the NTE74HC109 High-Speed CMOS Flip-Flop

The NTE74HC109 is a high-speed CMOS dual JK flip-flop, engineered for robust digital signal management and precision logic control in advanced circuit designs. Featuring industry-standard CMOS technology, this IC delivers superior switching speeds and low power consumptionideal for demanding digital systems and timing applications.

Key Features & Technical Specifications

• Logic Configuration: Dual JK flip-flop with asynchronous clear and preset capability, offering flexible and secure state toggling.
• Switching Technology: High-Speed CMOS construction for fast signal response and noise immunity.
• TTL Compatible Inputs: Fully compatible with standard TTL logic levels, facilitating seamless integration into mixed-technology environments.
• Input/Output Options: Each flip-flop provides independent J, K, Clock (CP), asynchronous set (SD), and reset (RD) inputs with complementary Q and Q outputs.

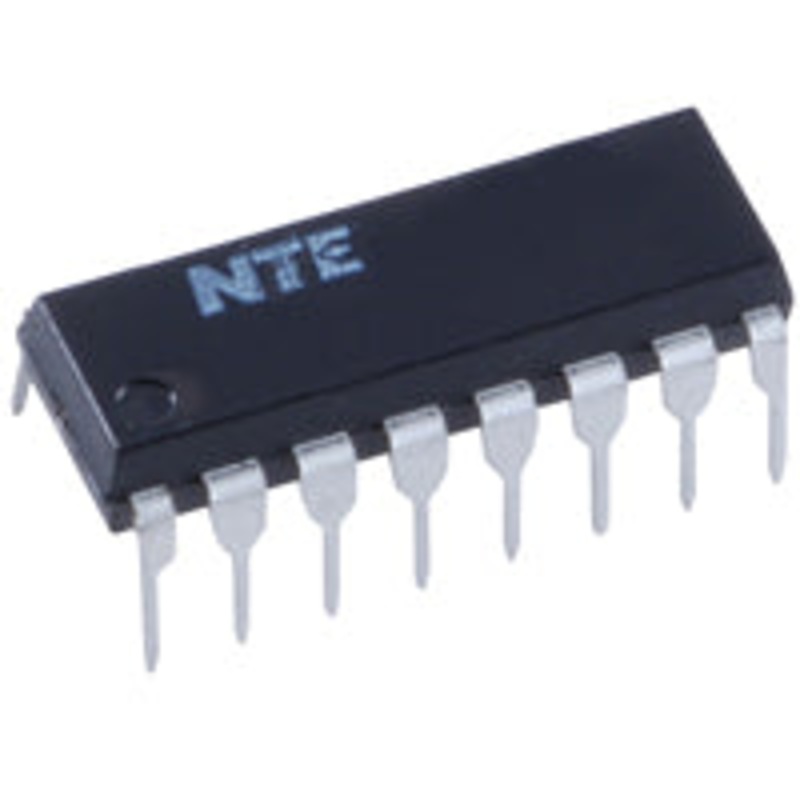

• Package: 16-pin dual in-line (PDIP-16) through-hole package for straightforward PCB mounting and prototyping.
• NTE Part Number: NTE74HC109
• Quantity per Package: 1

Applications & Usage

The NTE74HC109 dual JK flip-flop is suited for high-speed digital state storage, frequency division, signal toggling, and binary counting functions. Incorporate it into timing circuits, frequency synthesizers, counters, and other digital control circuits requiring reliable and precise state transitions.

Why Choose High-Speed CMOS JK Flip-Flops?

Utilizing a flip-flop with high switching speed and CMOS efficiency ensures reliable logic state retention, low quiescent current, and optimal pulse response. The NTE74HC109’s configuration supports both synchronized and asynchronous logic demands, making it suitable for innovative and industrial-grade electronic designs.

This part is the equivalent replacement for the following:

1820-3172, 74HC109, 74HC109N, 8-759-202-84, CD74HC109, CD74HC109E, ECG74HC109, HD74HC109, HD74HC109P, LR74HC109, M74HC109, M74HC109B1, M74HC109B1N, M74HC109P, MC74HC109, MC74HC109N, MLC74HC109, MM74HC109, MM74HC109AN, MM74HC109N, NJU74HC109N, NTE74HC109, PC74HC109, PC74HC109P, SK7C109, SN74HC109, SN74HC109N, SP74HC109, TC74HC109, TC74HC109AP, TC74HC109P, UPD74HC109, UPD74HC109C
