High-Speed CMOS Triple 3-Input NAND Gate

Overview

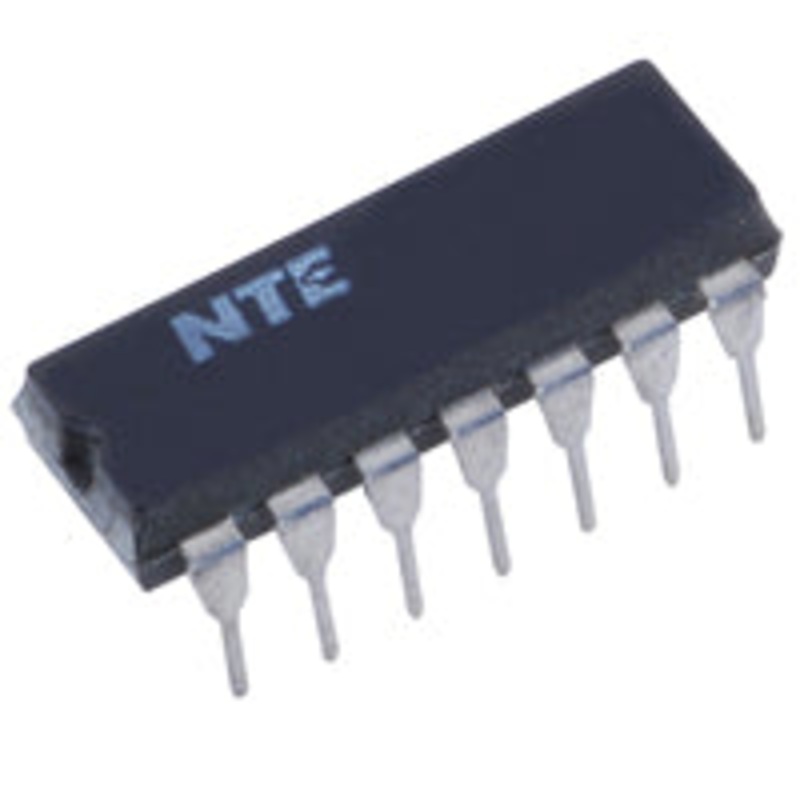

The NTE74HC10 is a high-speed CMOS logic IC featuring three independent 3-input NAND gates within a single 14-pin DIP package. Engineered for reliable, fast logic operations, this gate leverages advanced CMOS technology to deliver high performance while minimizing power consumption.

Key Features

• Logic Type: CMOS
• Configuration: Triple 3-input NAND gates
• Package: 14-pin Dual In-line Package (DIP)
• High Speed: Suitable for fast logic functions in demanding digital circuits

Technical Specifications

• Part Number: NTE74HC10
• Operating Voltage (Vcc): 2V to 6V
• Circuit Technology: CMOS high-speed logic
• Gate Quantity: 3 (each with three inputs)

Applications

• High-speed digital logic circuits
• Data and signal processing
• Timing and control systems
• General purpose logic functions in electronic designs

Package Details

• Form: 14-pin DIP
• Quantity Per Package: 1

Choose this high-speed CMOS NAND gate for applications that require reliable logic performance with efficient power usage. For technical support or additional information, contact .

This part is the equivalent replacement for the following:

1820-2923, 551-149-00, 74HC10, 74HC10N, 8-759-202-15, CD74HC10, CD74HC10E, ECG74HC10, GD74HC10, HD74HC10, HD74HC10P, IG100200, LR74HC10, M74HC10, M74HC10B1, M74HC10B1N, M74HC10P, MC74HC10, MC74HC10N, MM74HC10, MM74HC10N, MN74HC10, MSM74HC10RS, NJU74HC10N, NTE74HC10, PC74HC10, PC74HC10P, SK7C10, SN74HC10, SN74HC10N, SP74HC10, SP74HC10N, TC40HC10, TC74HC10, TC74HC10AP, TC74HC10N, UPD74HC10, UPD74HC10C
