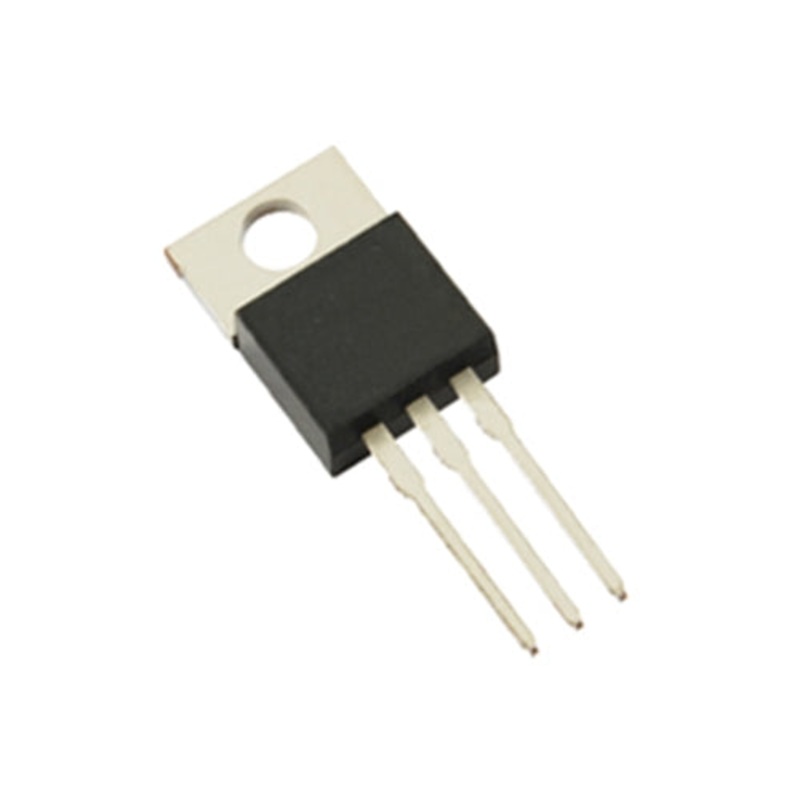

NTE56019, 200V @ 25A Silicon 3 Mode TRIAC ~ TO-220 Isolated Tab (ECG56019)

Specifications:

• On-State RMS Current: IT(RMS) 25A
• Repetitive Peak Off-State Voltage: VRRM: 200V
• Gate Current I(GT), Mode I & III: 50mA
• Gate Current I(GT), Mode II: 75mA
• Gate Voltage V(GT): 2.5V Maximum
• Surge Currect I(Surge): 250A
• Operating Temperature: -40C to +125C
• TO-220 Isolated Tab Package
• Replaces ECG56019
