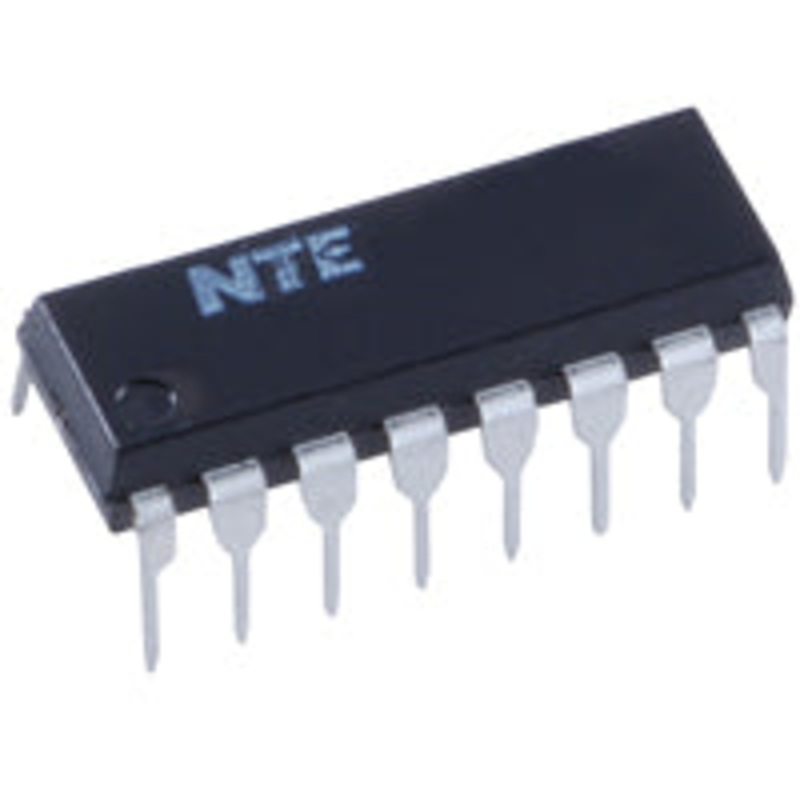

CMOS Dual 4-Stage Shift Register 4 Stage, DIP Package

Reliable CMOS Dual 4-Stage Shift Register for Data Handling Applications

The NTE4015B is a CMOS integrated circuit designed as a dual 4-stage static shift register. This IC provides two independent registers, each with four stages, making it ideal for data storage, serial-to-parallel or parallel-to-serial data conversion applications, and digital signal processing systems.

Key Features

• CMOS technology for low power consumption
• Dual 4-stage configuration for versatile data manipulation
• Packaged in a 16-pin DIP
• Supplied as single units (QTY Per Package: 1)

Technical Data & Usage

• Part Number: NTE4015B
• Logic Type: CMOS
• Register Stages: 4 per channel (2 channels total)
• Configuration: Dual, independent shift registers
• Form Factor: 16-pin Dual In-Line Package (DIP)

Suitable for demanding applications, the NTE4015B shift register is well-suited for use in serial data processing, buffering, and delay element circuits in digital electronics. Its CMOS structure assures both reduced power draw and dependable operation in a variety of circuit designs.

This part is the equivalent replacement for the following:

026609-000, 075-004015, 1079-CM, 1415-181, 142-13, 150418(ORGAN), 154771, 15-82596, 158771, 179-54142-13, 1820-0976, 1820-1176, 1820-1502, 1820-2008, 1820-2055, 19A134097P13, 236-0061, 315-0039, 315-0039(GREMLIN), 34015DC, 34015PC, 4015, 4015B, 4015BDC, 4015BE, 4015BPC, 4015(IC), 51-82822F11, 51-90507A92, 5190507A92, 51S90507A92, 51X90507A92, 54142-13, 72824-001, 733W00215, 801875, 991-026609, 991-026609-000, BCL4015B, BU4015B, CD4015, CD4015A, CD4015AC, CD4015AE, CD4015AM, CD4015B, CD4015BE, CD4015C, CM4015, CM4015A, CM4015AE, D4015(IC), ECD4015B, ECG4015, ECG4015B, F4015, F4015B, F4015BC, F4015BDC, F4015BM, F4015BPC, F4015PC, FD-1079-CM, GE-4015, HBF4015A, HBF4015BD, HBF4015BP, HCC4015B, HCF4015B, HCF4015BE, HCF4015BF, HD1-4015-9, HD14015B, HD14015BP, HD4015, HEF4015B, HEF4015BD, HEF4015BP, HEF4015P, IG00058, M4015B, M4015BP, MB84015, MB84015B, MC14015, MC14015B, MC14015BCL, MC14015BCP, MC14015CP, MM4015, MM5615A, MM5615AJ, MM5615AN, MN4015B, MSM4015, N4015, NTE4015B, SCL4015, SCL4015AE, SCL4015B, SCL4015BE, SK4015, SK4015B, SK4015B/4015B, SL58907, SW4015, TC4015B, TC4015BP, TC4015P, TM4015B, TP4015, TP4015AN, UPD4015, UPD4015BC, UPD4015C, W1170
