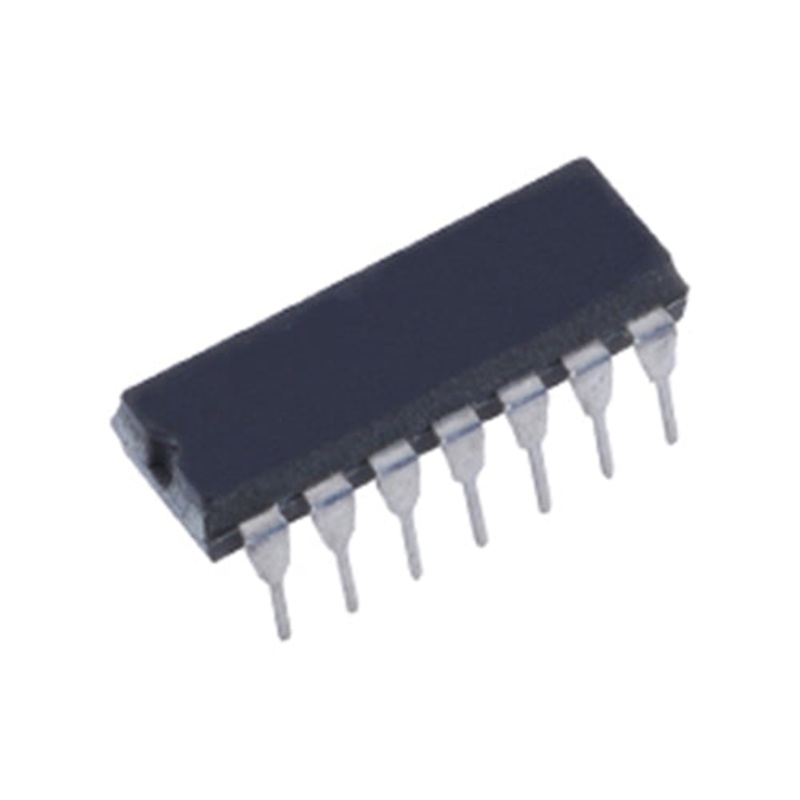

NTE4006B, CMOS 18-Stage Static Shift Register IC ~ 14 Pin DIP (ECG4006B)

FEATURES:

• NTE4006B, CMOS 18-Stage Static Shift Register IC
• Supply Voltage Range: 3V DC to 18V DC
• Output Transitions Occur on the Falling Edge of the Clock Pulse
• Can be Cascaded to Provide Longer Shift Register Lengths
• Capable of Driving Two LowPower TTL Loads or One LowPower Schottky TTL Load Overthe Rated Temperature Range
• Package/Case: 14 Pin DIP
• Replaces: ECG4006B
