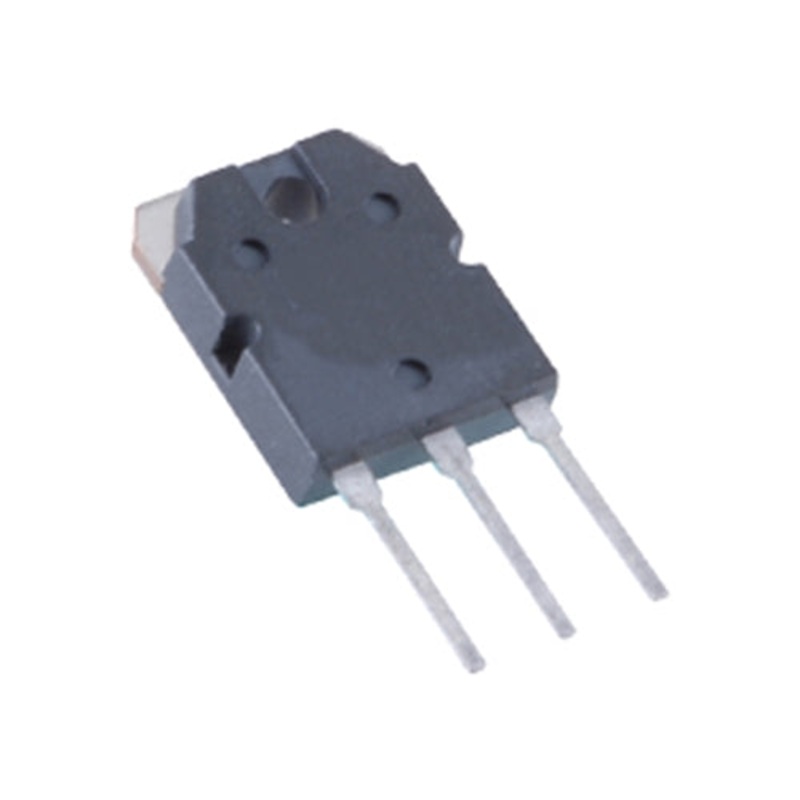

Name: NTE2394, 14A @ 500V MOSFET N Channel Enhancement Mode ~ TO-3P (ECG2394)
SKU: UC447645962749
Availability: InStock

Sale!

NTE2394, 14A @ 500V MOSFET N Channel Enhancement Mode ~ TO-3P (ECG2394)

NTE2394, 14A @ 500V MOSFET N Channel Enhancement Mode High Speed Switch ~ TO-3P (ECG2394)SPECIFICATIONS:Drain-Source Voltage Vdss: 500VGate Threshold Voltage Vgs(off): 4.0VGate-Source Voltage Vgs: 20VDrain Current Id: 14APd: 180W MaximumDrain-Source Resist

$10.79 $17.99

NTE2394, 14A @ 500V MOSFET N Channel Enhancement Mode High Speed Switch ~ TO-3P (ECG2394)

SPECIFICATIONS:

Drain-Source Voltage Vdss: 500V
Gate Threshold Voltage Vgs(off): 4.0V
Gate-Source Voltage Vgs: 20V
Drain Current Id: 14A
Pd: 180W Maximum
Drain-Source Resistance Rds: 0.4 Ohms Maximum
Package/Case: TO-3P
Replaces: ECG2394
