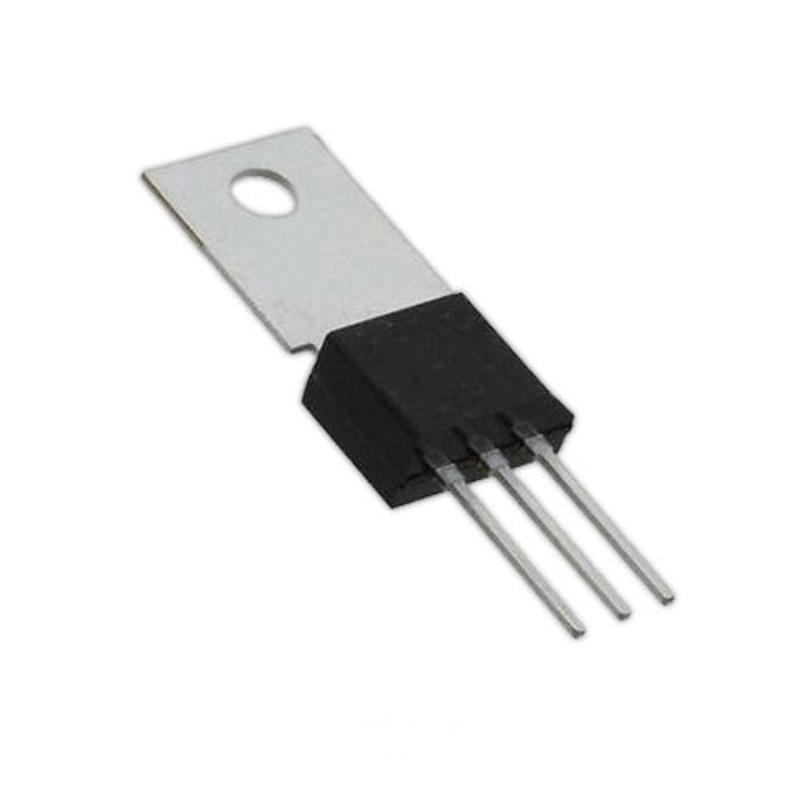

NTE211, PNP Silicon Transistor General Purpose Output & Driver ~ TO-202 (ECG211)

This is a NPN Silicon Transistor for general purpose, medium voltage, medium power amplifier and driver applications; such as series, shunt and switching regulators, and low and high frequency inverters and converters.

TRANSISTOR FEATURES:

• Vcbo: 90V
• Vceo: 75V
• Vebo: 5V
• Ic: 1A
• Pd: 1.25W
• hFE: 120 Minimum
• fT: 200MHz Minimum
• Package/Case: TO-202
• Replaces: ECG211
• Complement to: NTE210, ECG210
