3 1/2-Digit CMOS A/D Converter

High-Accuracy Dual Slope Analog-to-Digital Converter

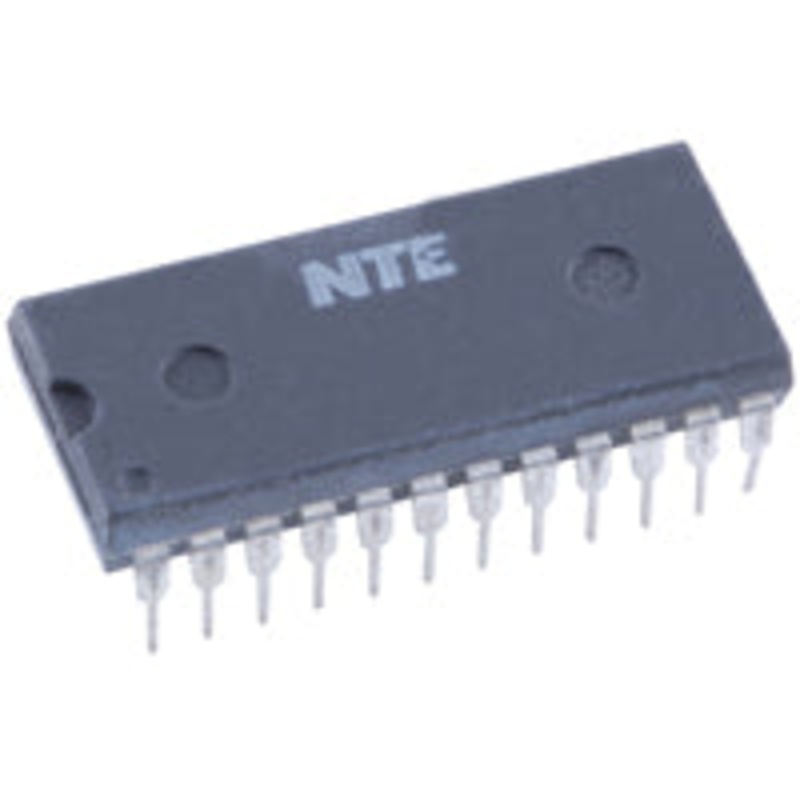

The NTE2055 is a 3 1/2-digit CMOS analog-to-digital converter designed for precision digital measurement applications. Leveraging dual slope integration, this A/D converter delivers high accuracy and noise rejection, making it ideal for digital voltmeters, instrumentation, and other precision circuits where reliable and stable analog-to-digital conversion is critical.

Key Features of the NTE2055 CMOS A/D Converter

• 3 1/2-digit digital display capability for precise analog measurements
• CMOS technology for low power consumption and exceptional noise immunity
• Dual slope conversion methodology ensures noise rejection and stable output
• Auto-zero and auto-polarity features streamline precision measurements
• Ratiometric operation supports applications requiring absolute voltage reference
• Available in a robust 24-lead DIP package for easy integration

Typical Applications

• Digital panel meters
• Industrial measurement and control equipment
• Data acquisition systems
• Portable instrumentation

Technical Specifications

• Part Number: NTE2055
• Technology: CMOS
• Display: 3 1/2 digits (supports up to 1999 counts)
• Package: 24-lead Dual Inline Package (DIP)
• Conversion Method: Dual slope integration
• Features: Auto-zero, auto-polarity, ratiometric operation

Reliable Analog-to-Digital Converter for Precision Measurement

Engineers and designers seeking a high-accuracy, low-power, 3 1/2-digit analog-to-digital converter will find the NTE2055 ideal for a wide variety of digital measurement requirements. Its combination of dual slope integration, CMOS fabrication, and auto-zero functionality ensures dependable, repeatable performance in demanding environments.

This part is the equivalent replacement for the following:

14433CDL, 14433CPL, 14433NJL, 1826-0431, 307-085-9-001, C4059P, ECG2055, MC14433, MC14433BPC, MC14433L, MC14433P, NTE2055, SK10282, SK10282/2055, TC14433, TC14433EPG Vetco stocks a complete inventory of electronic parts, including Integrated Circuits (IC’s), Transistors, Diodes, and LEDs. Looking for more information? Please click here to search NTE’s online component CROSS REFERENCE SEARCH
