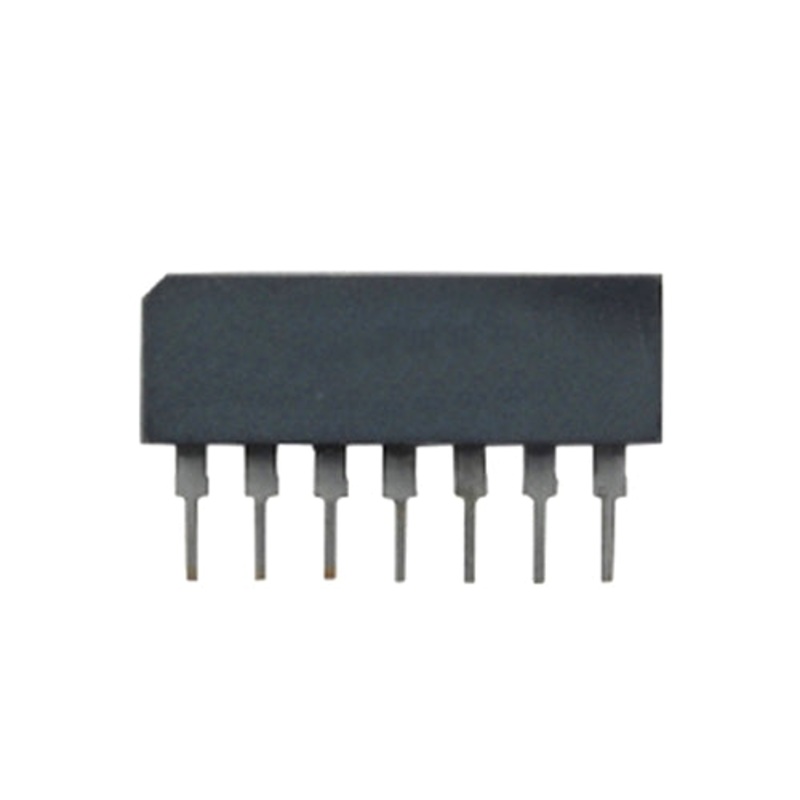

NTE1082, FM IF Amplifier and Equalizer Preamp IC ~ 7 Pin SIP (ECG1082, UPC577H)

The NTE1082 is a silicon monolithic integrated circuit intended for usa as a three-stage FM IF amplifier having exceptionally high voltage gain and limiting characteristics. From pin 1 the stabilized Voltage can be applied to the mixer stage.

FEATURES:

• NTE1082, FM IF Amplifier and Equalizer Preamp IC
• Operating Voltage, Vcc: 10V
• Maximum Voltage, Vcc-max: 15V
• Current, Icc: 12.5mA (Typical)
• Power Dissipation, Pd: 300mW
• Package/Case: 7 Pin SIP
• Replaces: ECG1082, GEIC-140, UPC577H
