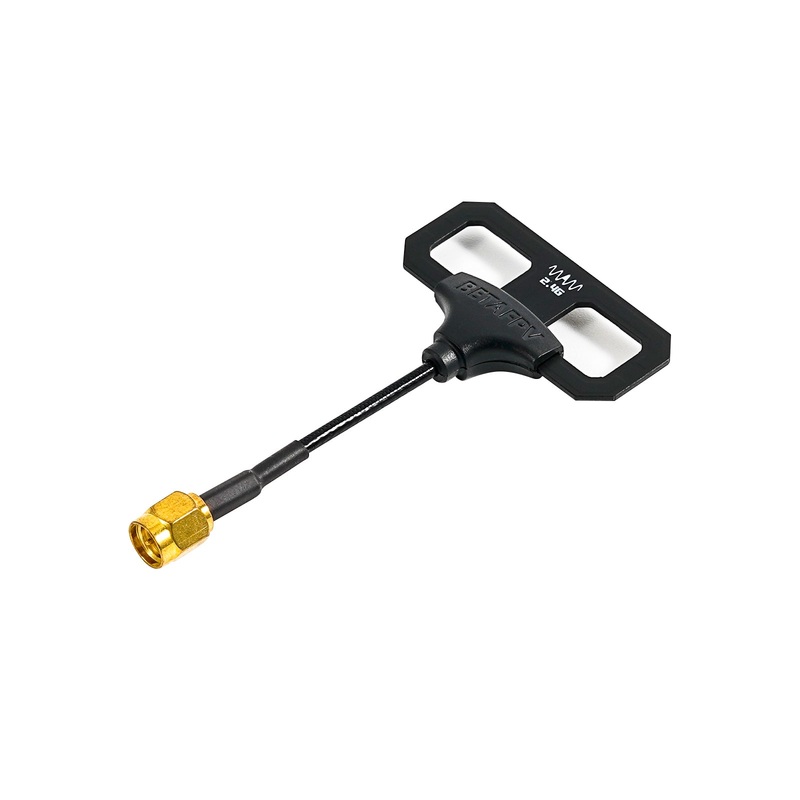

TheMoxon antenna is designed and manufactured by for the 2.4G/915MHz/868MHz TX module.The Moxon antenna is a directional antenna with a high gain of 5.5dbi to the front.

A ton of ExpressLRSitems are available now!

Specification

Moxon Antenna

• Coaxial cable length: 49mm(2.4G)/72mm(915M/868M)
• Connector: SMA Male
• Gain: 5.6dBi(2.4G)/5.7dBi(915M)/5.7dBi(868M)
• VSWR: <2.0(2.4G)/<2.0(915M)/<2.0(868M)
• Suggested for: Nano TX Module/ Micro TX Module,Any 2.4G/868MHz/915MHz TX module or radios

Moxon Antenna V2

• Coaxial cable length: 65mm (2.4G)/90mm (915M)
• Connector: SMA Male
• Gain: 5.4dBi (2.4G)/5.9dBi (915M)/5.7dBi (868M)
• VSWR: <2.0 (2.4G)/<2.0 (915M)
• Polarization type: Linear polarization
• Suggested for: Any 2.4G/915MHz TX module or radios
• Suggested for: Nano TX Module / Micro TX Module,Any 2.4G/868MHz/915MHz TX module or radios

New Features on Moxon Antenna V2

Moxon Antenna has been very popular with pilots since its release. By taking the features of Moxon and adding some new ones, the coaxial cable of Moxon V2 is soldered to the antenna,decreasing thesignal transmission loss for better performance. Besides, the soldered joint isprotected by an injection molding cover, making it a whole unit and very easy to install.

Which antenna should I choose? Can it replace the stock radio antenna on the Frsky Taranis series or TBS Tango series?

Pilots would upgrade their radios that already support swappable antennas with this Moxon antenna. Note that do NOT use the antenna with the wrong frequency. Even if they look almost the same outside, they will have totally different performances at the wrong frequency point.

The Moxon antenna is directional to the front. Below is the antenna 3D radiation pattern image.

Moxon

Moxon V2

Package

• 2* BETAFPVMoxon Antenna or 1 * Moxon Antenna V2
