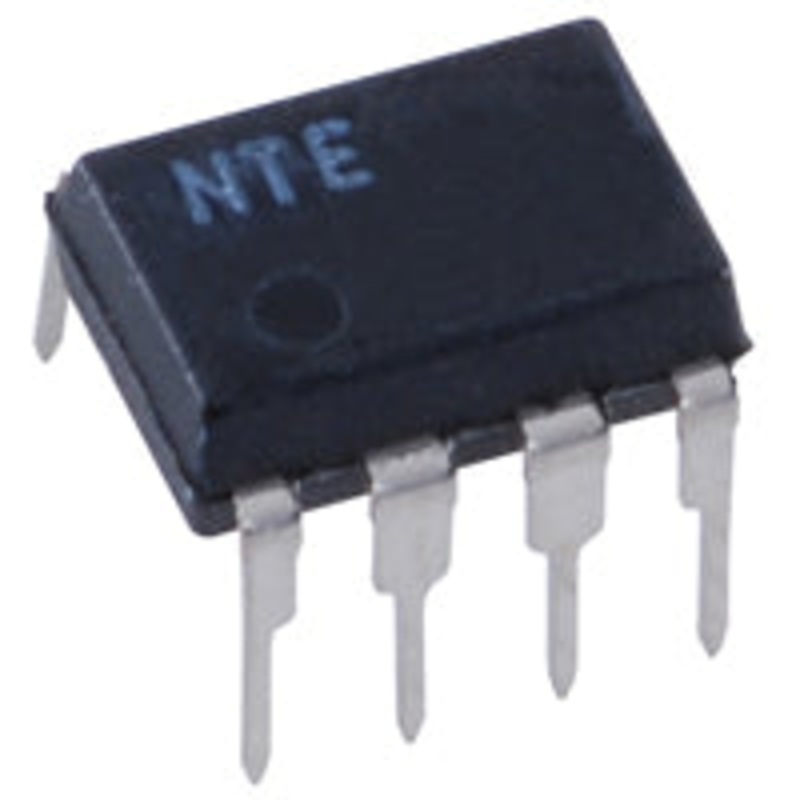

Frequency Compensated Operational Amplifier 8-Pin DIP

Overview

The NTE941M frequency compensated operational amplifier is engineered for high reliability and stability in analog circuit applications. Housed in a standard 8-pin DIP configuration, this op amp is designed for use where general-purpose performance and frequency compensation are required. The NTE941M is functionally equivalent to the LM741N op amp, making it ideal for precision signal amplification, active filters, and control systems.

Key Features

• Frequency compensated op amp with stable, high-gain performance
• Standard 8-pin DIP package for easy PCB integration
• General-purpose, internally compensated design
• Functional equivalent to industry-standard LM741N

Technical Specifications

• Part Number: NTE941M
• Package: 8-pin Dual Inline Package (DIP)
• Quantity Per Package: 1
• Type: Frequency Compensated Operational Amplifier

Common Applications

• General-purpose signal amplification
• Active filter circuits
• Data acquisition and analog signal processing
• Instrumentation and measurement systems
• Voltage followers and unity-gain buffers

Usage Instructions

Install the NTE941M op amp in a compatible 8-pin DIP socket to ensure proper electrical contact and ease of future service. For optimal reliability, operate within the manufacturers recommended supply voltage and ambient temperature ratings. This operational amplifier is suitable for both new designs and direct replacement in legacy circuits requiring the LM741N.
