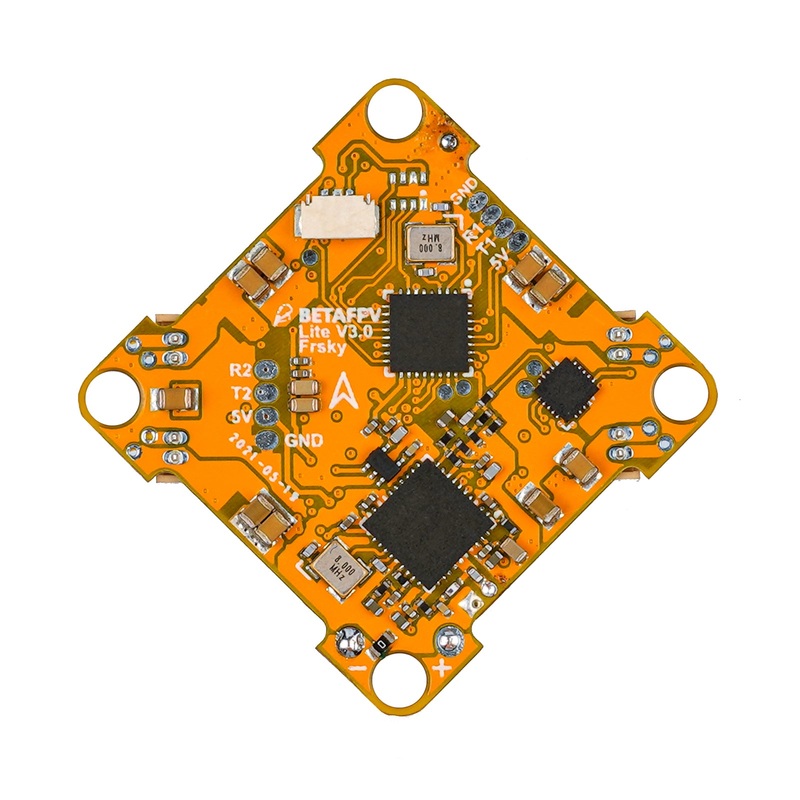

Since we released the world’s first whoop FC with Silverware firmwarein 2017, this board become so popular among FPV pilots. Now we have upgraded to the V3 version with a ton of improvement.

Know More About V3

The Lite brushed FC V3 is available with a sereis of improvement based onV2 version.

• Built-in SPI Frsky receiver with D8 protocol.
• PC Configurator is available for FC tuning and firmware flashing.
• Integrate 25mW VTX, support change VTX channel brand via remote control.
• Add LiteOSD information and OSD Menu.

User Manual forLite Brushed FC V3 board

Key Features

• The V3 board comes pre-flashed withLiteSilverfirmware. This must be the most simple and affordable method to try whoop FPV racing hobby.
• Pilot could tune the FC board via the PC Configurator released with the V3 board at the same time.
• Built inFrsky D8 protocol native receiver, compatible with almost radio transmitter in the market. No need additional external Bayang TX module as V2 board.
• Pre-soldered 55mm power cable pigtail with BT2.0 connector. So that pilot could try all features of this popular connector without any modification.

Specifications

• CPU: MM32F103KBU6
• Six-Axis: MPU6000
• ESC: All FETs are rated at 6.3A maximum. Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
• Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
• Firmware version: LiteSilver V3 firmware
• Receiver: Built-in SPI Frsky with D8 protocol
• Power Cable: 55mm, with BT2.0 connector
• Port: External USB Type-C
• Weight: 3.2g

LiteSilver Firmware

LiteSiver is the next generation firmware developed by for whoop FPV drones. The idea of most features in this firmware is from the popularSilverware firmware.Comes with the V3 board, the PC configutator is also available.It has the ability to change settings for custom builds, or to adapt to personal preferences.

LiteOSD OSD Menu

We developed the smallest and most efficient OSD solution (named LiteOSD) for LiteSilver FC board.LiteOSD is also integrated in the V3 board. So that you could setup many configrations according to your own preference easily with remote control. The method of entering OSD Menu on Lite Brushed FC is same as Betaflight.

-Use Mode 2 (American Mode) as example-
Note: The left throttle stick should be at the middle position and then pull left.
Note: AETR is the default channel mapping of Lite FC. If you can not enter the OSD menu, it might cause by unmatched channel mapping.

Package

• 1 * Lite Brushed Flight Controller V3
• 1 * USB Type-C adapter
• 4 *M1.2x4mm screws (Fit for stock Inductrix frame)
• 4 *M1.4x5mm screws (Fit for Beta75 etc 75mm frame)
• 4 * Anti-vibration ruber dampers
