Specification

• Dimension: 21.5x12x3.5mm(LxWxH)
• Weight: 1.6g
• Number of Channels: Up to 16CH from SBUS(CH1~CH15 for PWM, CH16 RSSI for FC)
• Operating Voltage Range: 3.7~10V
• Operating Current: 30mA@5V
• Operating Range: FULL range
• With RSSI output on board: Analog 0~3.3V
• Firmware Upgradeable
• Compatibility: FrSky D16 mode
• No Telemetry

Package

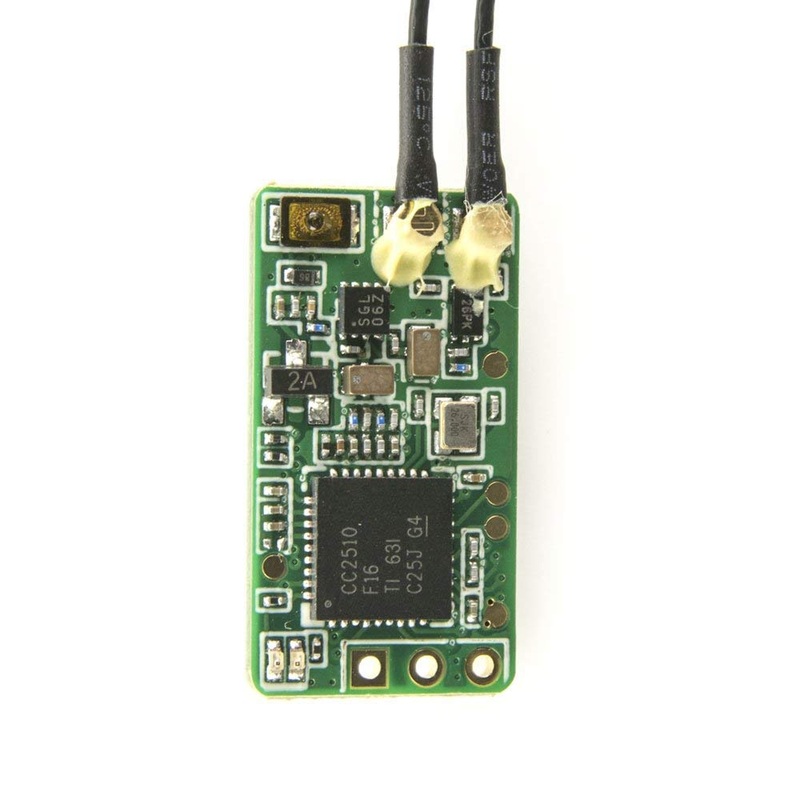

• 1* FrSky XM+ SBUS Mini Receiver
