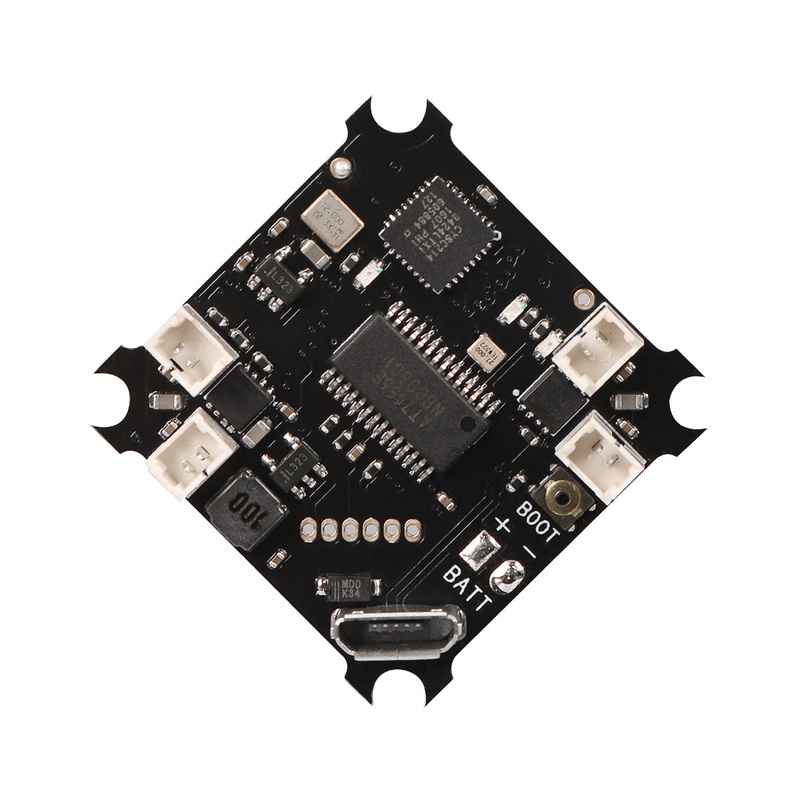

‘s F4 DSMX Brushed FCboardtakes a big step further compared with F3 DSMX Brushed FC.

WithSTM32F411CEU6 CPU and 30A maximum of all FETs, the F4 DSMX Brushed FC gives the drone noticable perfomance and power improvement.

Key Features

• High performance CPU: STM32F411CEU6 CPU
• Battery polarity reversed connection protection. The fc board remains perfect even if you plug the battery in wrong way.
• Fully programmable through Betaflight, using the onboard USB port, tune all the parameters, PID’s, and rates to your perfect settings
• Designed to work with current Whoop Drone or Blade Inductrix setups
• Built in DSMX protocol native receiver (SBUS), compatible with almost ALL Spektrum radios(e.g. Spektrum DX6/DX6i/DX8…) or DSMX compatible transmitter module
• The flight controller board comes pre-flashed with Betaflight firmware, and pre-soldered 55mm power cable pigtail with JST-PH 2.0 connector, AKA PowerWhoop connector.

Specifications

• CPU: STM32F411CEU6
• Six-Axis: MPU6000
• ESC: All FETs are rated at 30A maximum.Support 6x15mm/7x20mm/8x20mm/8.5x20mm etc motors.
• Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
• Firmware version: Betaflight MATEKF4113.5.0
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• Receiver: DSM2/DSMX
• Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
• Weight: 3.8g

HOW TO CONNECT THE FC TO Z02

BetaFlight OSD

Betaflight OSD (on screen display) is integrated in F4 brushed flight controllers that shows important flight data on your FPV feed, such as battery voltage, current draw and much more. You can even use it as a menu to change your quads PID, rates, filters and other settings.

Howto do an OSD with the AIO cameras?

There is a video in and out on the fc itself, labeled CAM and VTX as show below. There should be a video in and out on the AIO camera, like H02 etc. If not, you would have to modify the camera for sure but it would totally be worth it. Here isan example.

BETAFPVH02 Camera, FX806TC, VM275, FX805, Eachine XT02 etc aio camera vtx are available to use the OSD function.

SupportFreshdesk forBetaFlight OSD Setup.

Tips: There is no current sensor on the FC boards. So theamperage value on the OSD is invalid.

Binding Procedure

Step 1

Connet the receiver to FC and run the Betaflight. On Betaflight GUI, configure the UART1 port to serial port in Ports tab. Then click the Save and Reboot button in the lower right corner.

Step 2

In the Configuration tab, for Receiver Mode, choose Serial_based receiver (SPEKSAT, SBUS, SUMD); Serial Receiver Provider, choose SPEKTRUM2048. And click the Save and Reboot button in the lower right corner.

Step3
Type: set spektrum_sat_bind=9 in CLI and save.

Step 4
Repower the receiver. The orange light on the receiver will flash rapidly, which means it’s on binding mode.

Step 5
Turn on the radio and select bind mode. Wait a moment. It means bind successfully if the orange light on receiver is solid on.

Status LED

This board has 3 LEDs to indicate the status, including Receiver LED (Orange ), FC Status LED ( Red ) and FCStatus LED ( Blue ). These three LEDs are all at the bottom of the FC board.

DSMX Receiver

Some pilots would complaint that it is definitely not a long range FC. It looses signal with my transmitter far too often and for what appears to be no reason. This issue is often caused by the location of the antenna. You should keep the antenna away from the FC board to get a stronger signal. For example, run the singal upwards. Thanks forHarley Finberg’s advice.

Thisintegrated DSMX receiver is NOT compatible with Spektrum DXe radio transmitter and OrangeRX RF module.For some Spektrum radio transmitter like DX6i/DX6e etc, the DSMX receiver may have a horrible range with your radio transmitter, please change the mode to DSM2 (DSMX in default). This issue is figured out by Micro Motor Warehouse.

FAQ

Find CliDump of F4 Brushed FC (DSMX Rx) on our support page.

Package

• 1 * F4 OSD brushed flight controller DSMX Rx version ( 55mm PH-JST 2.0 power cable soldered)
• 4 *M1.2x4mm screws (Fit for stock Inductrix frame)
• 4 *M1.4x5mm screws (Fit for Beta75 etc 75mm frame)
• 4 * Anti-vibration ruber dampers
• 1 * 55mm PH-JST 1.25 power cable pigtail
