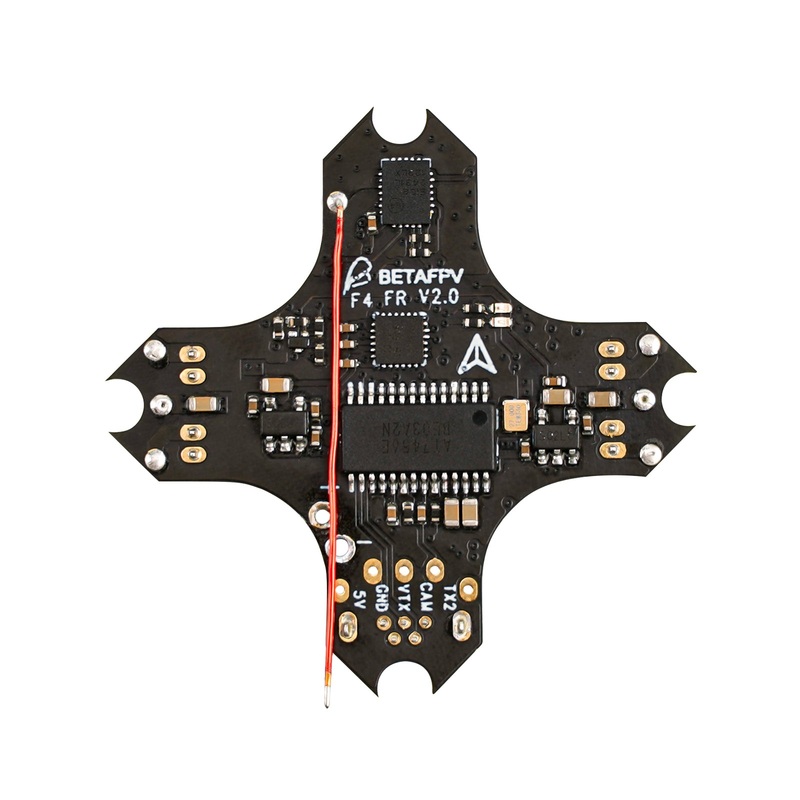

The classical F4 Brushed Flight Controller comes back with new changes and particular shapes. Build-in CC2500 chip, the default protocol is configured to FrskyD8 out of the factory and can be adjusted to Frsky D16 FCC, Frsky D16 LBT, or Futaba. Besides, the power cableadopts BT2.0 connector instead of PH2.0, which improves the performance and is compatible withBETAFPV BT2.0 series batteries.

Specifications

• CPU: STM32F411CEU6
• Six-Axis: MPU6500
• ESC: All FETs are rated at 30A maximum
• Motor: Support 6x15mm/7x16mm/8x20mm/8.5x20mm etc motors. Recommend BETAFPV7x16mm Brushed Motors (2CW+2CCW)
• Size: 26mm x 26mm, fully compatible with the Inductrix quad frame and mounting pattern
• Firmware version: Betaflight BETAFPVF411RX 4.2.11
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• Receiver: SPI Frsky D8 (CC2500 chip, adjustable)
• Power Cable: 55mm, with BT2.0 Connector
• Weight: 3.68g (with Power Cable)

What’s the Upgrade

Compared with the previous version F4 Brushed Flight Controller V1.2, now the V2.0 version comes with SPI Frsky D8 receiver that can be compatible with Futaba S-FHSS, FrskyD16 FCC, and Frsky D16 LBT protocol. The power cable applies BT2.0 connector instead of PH2.0, which solves the problem of voltage sag, and the discharge can be more efficient, bringing this board a better performance on function for power and responsiveness. What’s more, with the compatibility ofBETAFPV BT2.0 seriesbatteries, it is convenient to upgrade in the future. Besides, it supports custom RGB lights on the Betaflight configuration, which makes your drone unique from others.

Diagram forF4 Brushed Flight Controller

Below is the diagram for F4 Brushed Flight Controller.

Connection diagram for VTX. Here is the example of M03 25-350mW 5.8G VTX

LED status is below.

It supports custom RGB lights on the Betaflight configuration.

SPI Frsky Receiver

With the build-in SPI Receiver CC2500 chip, F4BrushedFC V2.0 can be compatible with Futaba S-FHSS, Frsky D16 FCC, and D16 LBT protocol. The default protocol is configured to FrskyD8 out of the factory. Pilots could set up the protocol according to their needs in Betaflight Configurator.

RECOMMENDED PARTS LIST

• Battery:BT2.0300mAh 1S Battery
• Frame: 65mm Micro Whoop Frame
• Props:31mm 3-Blade
• Motors: BETAFPV7x16mm Brushed Motors (2CW+2CCW)
• VTX:M03 25-350mW VTX
• Recommend drones:Beta65S BNF Micro Whoop Quadcopter

FAQ

• Click here to know SPI Frsky Receiver Binding Manual.
• Firmware andCli Dump file forF4 Brushed Flight Controller.

Note: Please flash Cli Dump file if you flash firmware from Betaflight official site.

Package

• 1 *F4 Brushed Flight Controller (BT2.0 Connector)
• 4 * M1.2x4mm screws
• 4 * M1.4x5mm screws
• 4 * Anti-vibration rubber dampers
