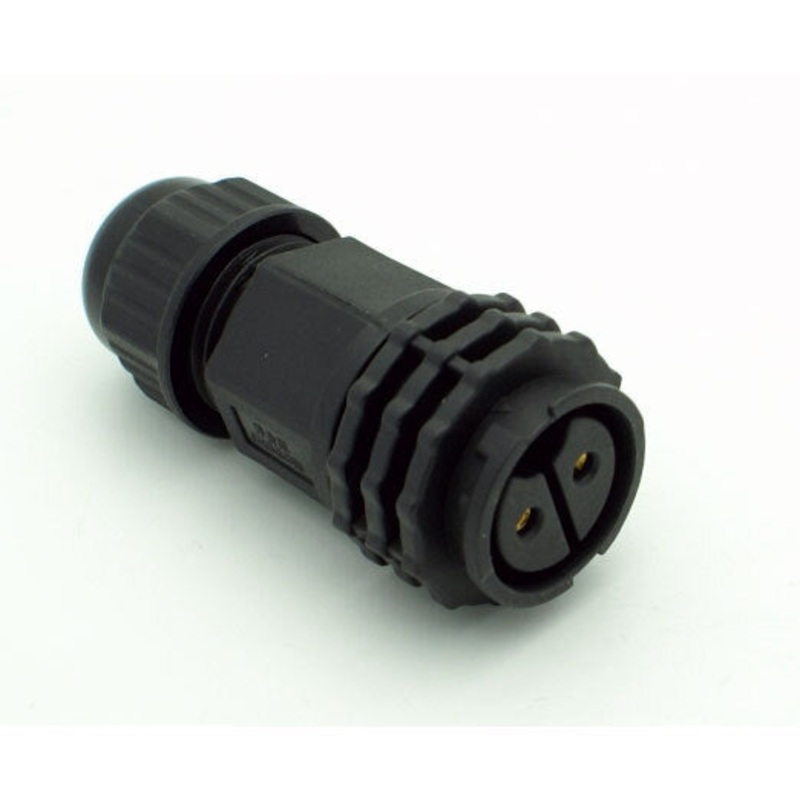

2 Pin Female Inline Waterproof Connector (12-18 AWG) Extra Large Series
Reliable 2-Pin Waterproof Electrical Connector for Outdoor and Marine Use
Looking for a secure, weatherproof wire connector? This 2 pin female inline waterproof connector is the perfect choice for any project demanding durable, moisture-resistant electrical connections. Built to fit 12-18 AWG wires, its ideal for automotive, marine, and outdoor power or lighting applications.
Easy, Field-Installable Weatherproof Design
Dont wrestle with electrical tape or messy sealants! This field installable waterproof connector creates a tight, waterproof seal using internal compression gaskets and o-rings. All you need for installation is a basic soldering iron and wire cuttersno special tools required. The positive locking threaded ring mates securely, so you can trust your connections to stay watertight during use.
Heavy-Duty and Versatile Applications
The Extra Large Series connector is built for high current (up to 20 Amps) and can transmit both power and data signals. Its suited for tough environmentsthanks to its IP67 environmental rating, these connectors are protected against dust and temporary submersion in water.
- Perfect for outdoor lighting, trailers, boats, and automotive wiring
- Excellent for marine and industrial tasks, or anywhere you need a strong, weatherproof connection
- Works with cable diameters from 6.5mm to 10.5mm
- No need for extra sealing products or chemicals
Technical Specifications
Product Details
| Part Number: |
VUPN8410 |
| Number of Pins: |
2 |
| Rated Current (40C): |
20 Amps |
| Voltage Rating: |
300 Volts |
| Supported Wire Gauge: |
12-18 AWG |
| Cable Size: |
6.5mm 10.5mm diameter |
| Environmental Protection: |
IP67 (Dust tight & protected against immersion) |
| Mechanical Life: |
500 mating cycles |
| Operating Temperature: |
-45C to 105C |
| Product Dimensions: |
29mm diameter x 60mm long |
| Connector Type: |
Female Inline |
Included: 1 x 2 Pin Female Inline Waterproof Connector (VUPN8410)
