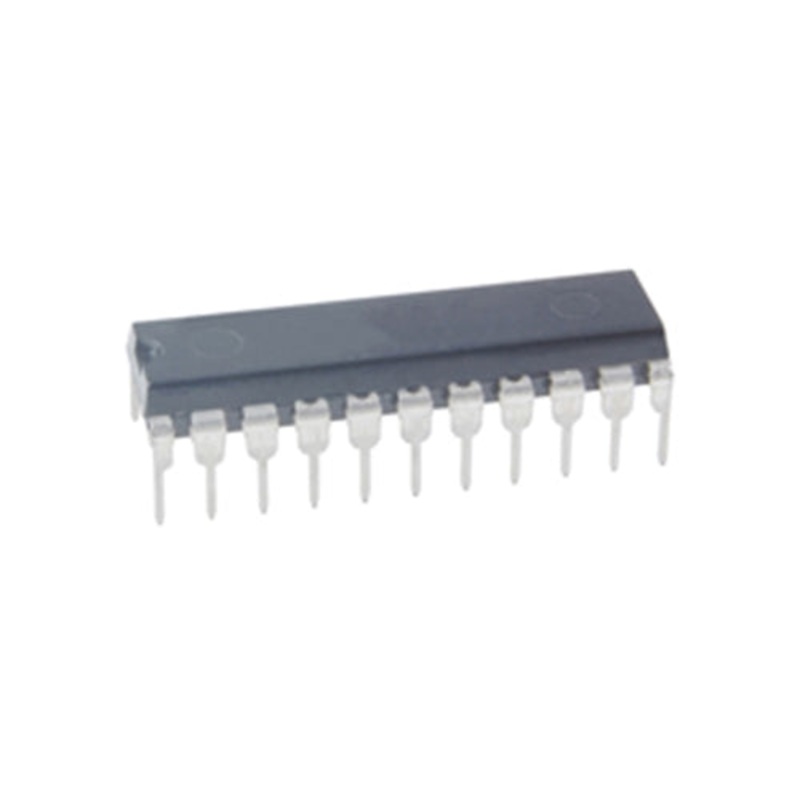

ECG7063, CRT Display Synchronization Deflection Circuit IC ~ 22 Pin DIP (NTE7063)

FEATURES:

• ECG7063, CRT Display Synchronization Deflection Circuit IC
• The Vertical PullIn Range is Approximately 10Hz at fV = 60Hz.
• The Horizontal Oscillation Frequency can be Adjusted Stably from 15kHz to 100kHz.
• The Horizontal Display can be Shifted Right/Left.
• The Horizontal/Vertical Sync Input can be Used Intact Regardless of the Difference in Pulse Polarity and Pulse Width.
• The AFC Feedback Sawtooth Wave can be Obtained by Simply Applying a Flyback Pulse to the IC as a Trigger Pulse.
• Any Duty of the Horizontal Pulse can be Set.
• Good Vertical Linearity because DC Bias at Vertical Output Stage is Subjected to Sampling Control Within Retrace Time.
• Excellent Interlace and Vertical Jitter Characteristics on the HighDefinition Display Because of Independent GND Pins for the Horizontal Block and Vertical Block.
• Package/Case: 22 Pin DIP Package
• Replaces NTE7063
