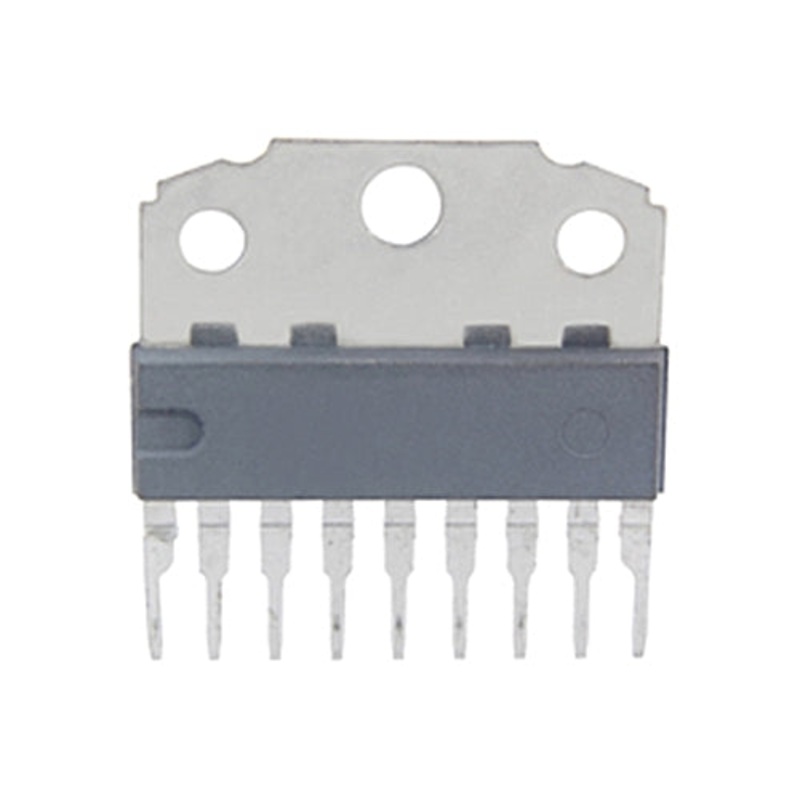

ECG7052, 3W BTL Mono Audio Amplifier IC ~ 9 Pin SIP (NTE7052)

SPECIFICATIONS:

• ECG7052, 3W BTL (Bridge-Tied-Load) Mono Audio Amplifier IC
• No External Components
• No ON/OFF Switch Clicks
• Good Overall Stability
• Low Power Consumption
• ShortCircuit Protection
• ESD Protected on All Pins
• Recommended Supply Voltage, Vcc: 11V
• Maximum Supply Voltage, Vcc-max: 18V
• Peak Repetitive Output Current, Iorm: 1A
• Power Output, Po: 3W Typical
• Power Dissipation Total, Ptot: 9W
• Load Resistance, Rl: 16 Ohms
• Package/Case: 9 Pin SIP
• Replaces: NTE7052
