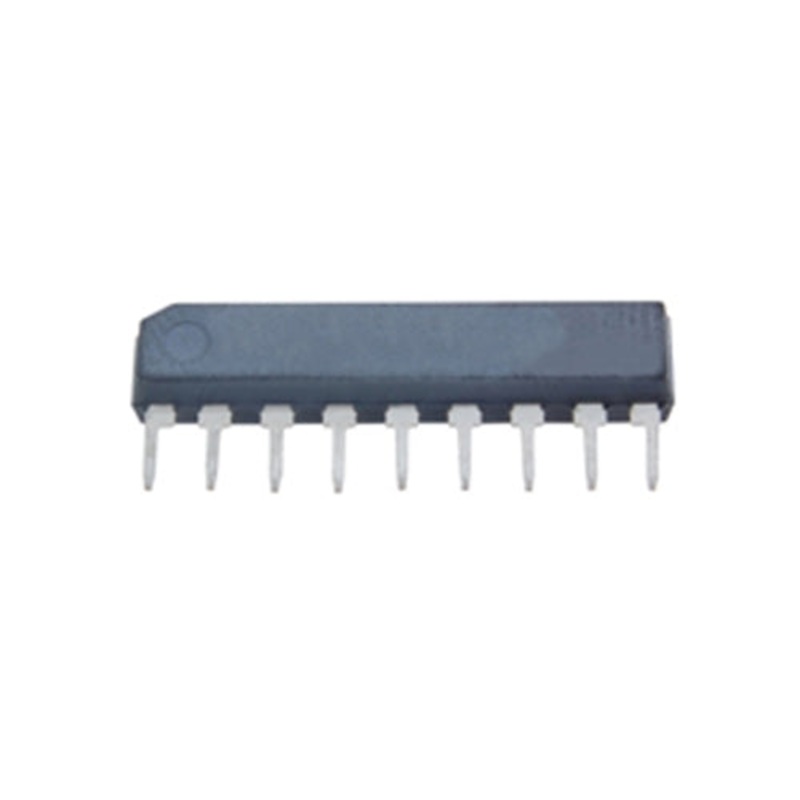

ECG7043, Bidirectional Motor Driver IC w/4 Modes ~ 9 Pin SIP (NTE7043)

FEATURES:

• ECG7043, Biderectional Motor Driver IC w/4 Modes
• Supply Voltage, Vcc: 25V
• Output Current, Io: 400mA (Average)
• 4 Modes Available: CW, CCW, STOP, and BRAKE
• Output Current Up to 1A (Average) and 2A (Peak)
• Wide Range of Operating Voltage:VCC opr = 4.5V to 18V; VS = 0 to 18V; Vref = 0 to 18V
• Built-In Thermal Shutdown, Overcurrent Protector, and Punch-Through Current Restriction Circuit
• Stand-By Mode Available: STOP Mode
• Hysteresis for All Inputs
• Package/Case:9 Pin SIP
• Replaces: NTE7043
