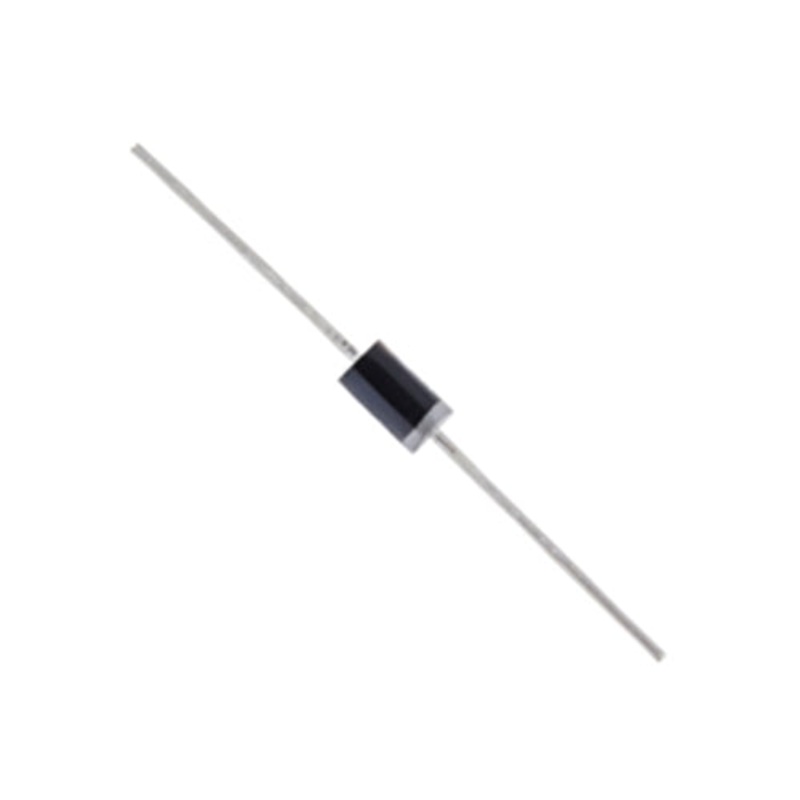

Philips ECG ECG4959, 68.0V DC Surge Clamping, Overvoltage Transient Suppressor, Bidirectional ~ Axial Lead (NTE4959)

The 4900 series of silicon Transient Suppressors designed to protect voltage sensitive components from high energy voltage transients. Transient over voltage suppressor devices have become very important as a consequence of their high surge capability, extremely fast response time, and low incremental surge resistance (Rs).

Specifications:

• Reverse Standoff Voltage, Vr: 58.1V
• Breakdown Voltage, Vbr @ 1mA IT: 64.6V Minimum, 68.0V Nominal, 71.4V Maximum
• Clamping Voltage, Vc: 92.0V Max. @ Ipp = 16.3A
• Peak Power Dissapation, Ppk: 1500W
• Case: Axial Lead Package
• Replaces: NTE4959
