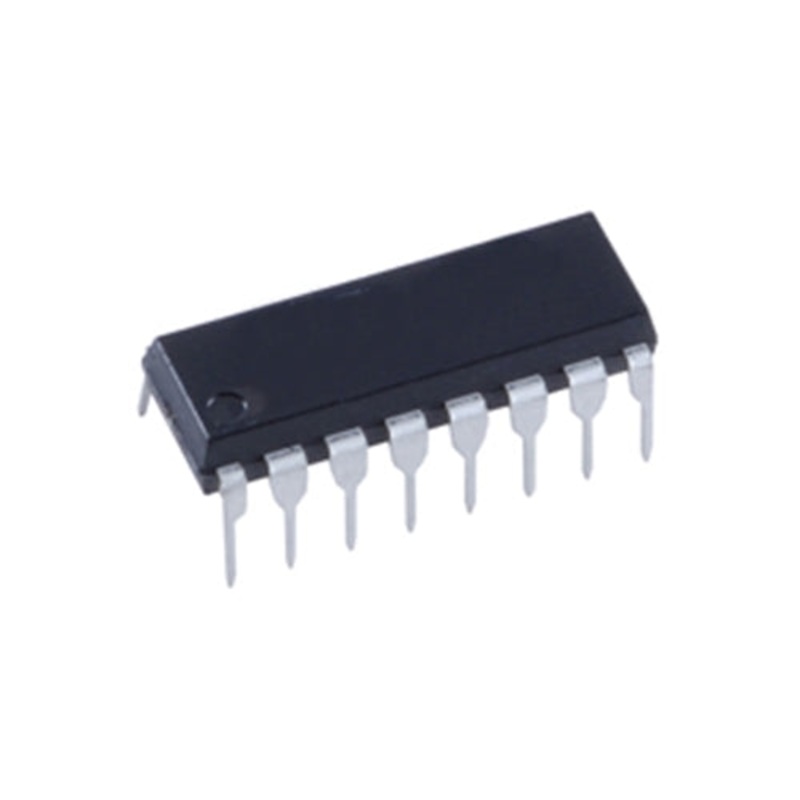

Philips ECG ECG4558B, CMOS BCD To 7 Segment Decoder ~ 16 Pin DIP (NTE4558B)

FEATURES:

• Philips ECG ECG4558B, CMOS BCD To 7 Segment Decoder
• Supply Voltage Range: 3V DC to 18V DC
• Quiescent Current = 5.0nA/Package (Typ) at 5V DC
• Segment Blanking for All Illegal Input Combinations
• Lamp Test Function
• Capability for Suppression of NonSignificant Zeros
• Lamp Intensity Function
• Capable of Driving Two LowPower TTL Loads, One LowPower Schottky TTL Load or Two HTL Loads Over the Rated Temperature Range
• 16 Pin DIP Package
• Replaces: NTE4558B
