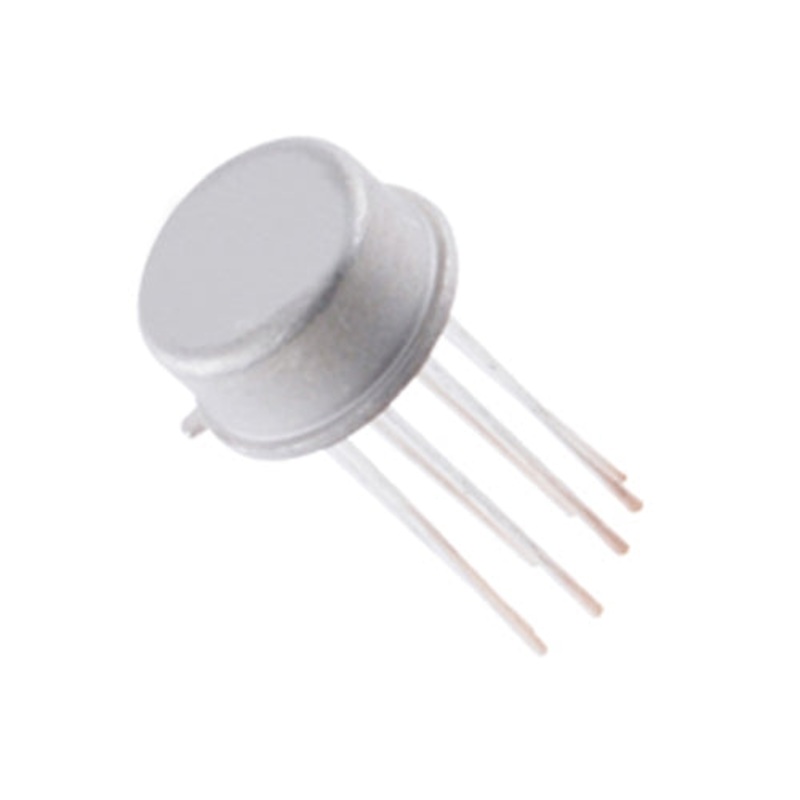

Philips ECG ECG372, Linear AM Receiver Subsystem IC including a High Gain Amplifier, an Active Detector and Self-Contained Automatic Gain Control ~ TO-5, 8 Pin Metal Can (NTE372)

FEATURES:

• ECG372, Linear AM Receiver Subsystem IC
• AGC Range: 60dB
• Audio Output of 0.8V p-p for 80% Modulated Inputs, at Carrier Levels as low as 50uV-rms
• Total Dissaoation only 8.4mW from +6V Supplyu, Usable with Supply up to +15V
• AGC Time Constant and Audio Frequency Response Selected by Choice oof External Capacitors
• Internal Supply Regulators Eliminate Individual Stage Decoupling
• AGC Voltage Available to Drive Receiver “Front End”
• Supply Voltage Range: +6V to +15V
• Power Supply Drain, Ips: 1.4mA typical
• Maximum Usable Frequency, muf: 2MHz
• Case: TO-5, 8 Pin Metal Can14 Pin DIP
• Replaces: NTE372
