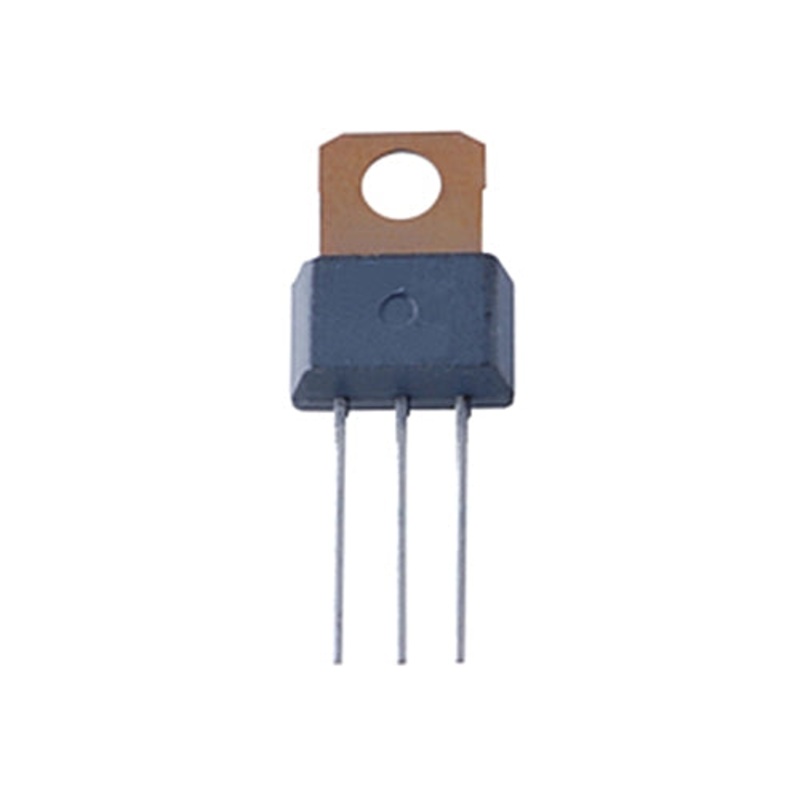

ECG322 NPN Silicon RF Transistor 65V@500mA, 3.5W Minimum ~ 27MHz. TO-202N Package (NTE322)

The ECG322 is a silicon NPN RF power transistor in a TO-202N type package designed for use in Citizen Band and other high frequency communications equipment operating to 30MHz. Higher breakdown voltages allow a high percentage of up modulation in AM circuits.

Specified 13.6 Volt, 27MHz Characteristics:

• CollectorBase Voltage, Vcbo: 65V
• Collector-Emitter Voltage Vces: 65V Maximum
• EmitterBase Voltage, Vebo: 3V
• Collector Current Ic: 500mA
• Output Power, Po: 3.5 Watts Minimum
• Total Device Dissapation, Ptot: 10W
• Amplifier Power Gain: 11.5dB Minimum
• Case: TO-202N
• Replaces NTE322
