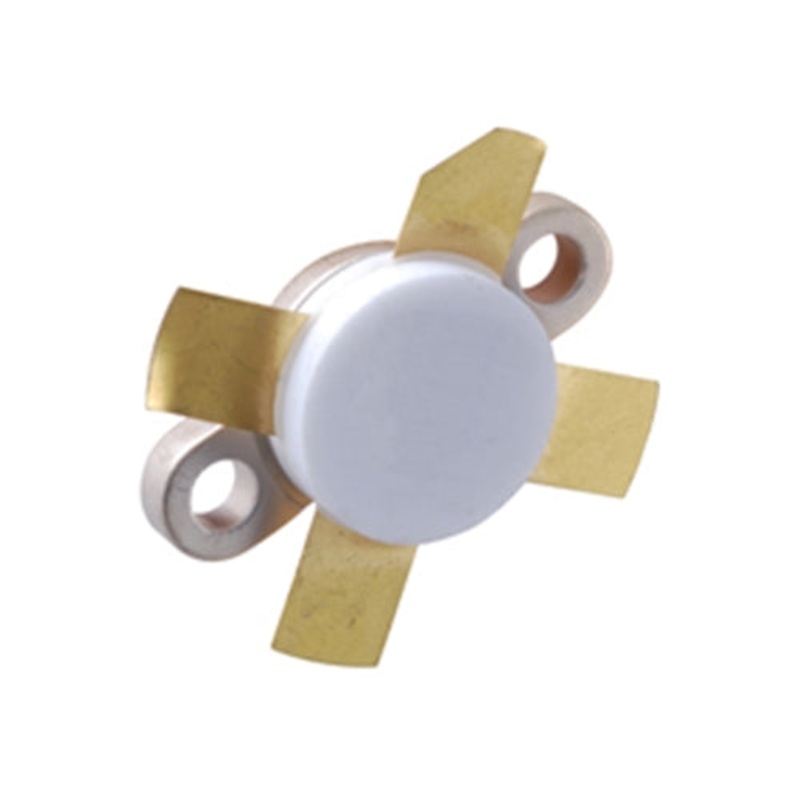

ECG317 NPN Silicon RF Transistor 36V@15A, 70W Max ~ 14-30MHz. RF-50F Package (NTE317)

The ECG317 isdesigned for power amplifier applications in industrial, commercial and
amateur radio equipment 14 to 30MHz.

Specified 12.5 Volt, 30MHz Characteristics:

• CollectorBase Voltage, Vcbo: 36V
• Collector-Emitter Voltage Vceo: 36V Maximum
• EmitterBase Voltage, Vebo: 4V
• Collector Current Ic: 15 Amps
• Output Power, Po: 70 Watts
• Input Power, Pi: 3 Watts
• Total Device Dissapation, Ptot: 220W
• Minimum Gain: 13.5dB Minimum
• Case: RF-50F
• Replaces NTE317
