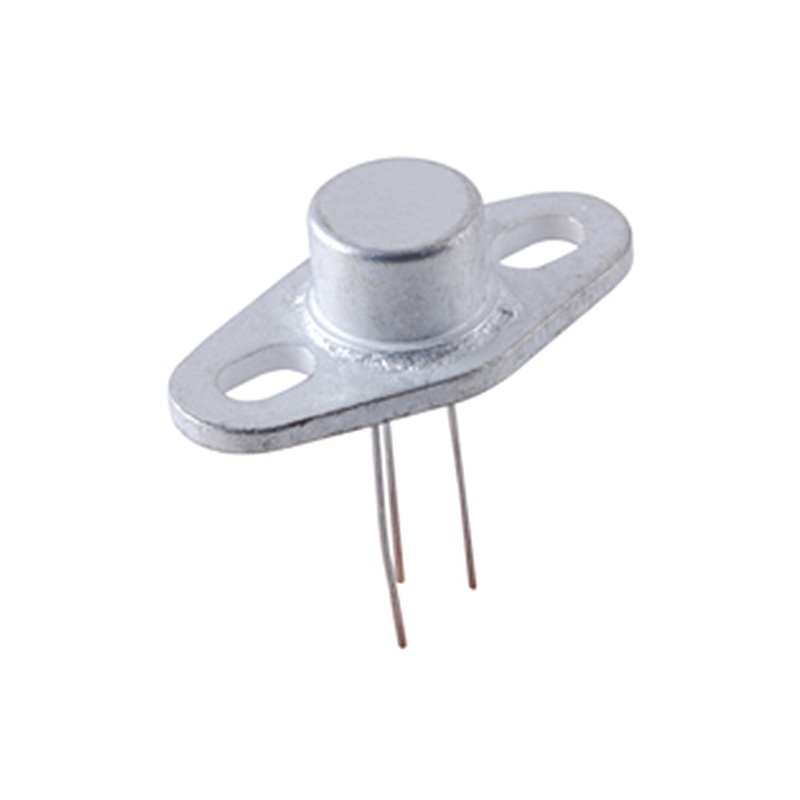

Name: ECG224 NPN Silicon RF Transistor 60V@2A, 4W Min ~ 27MHz MD-34/TO-39F (NTE224)
SKU: UC447645966171
Availability: InStock

Sale!

ECG224 NPN Silicon RF Transistor 60V@2A, 4W Min ~ 27MHz MD-34/TO-39F (NTE224)

ECG224 NPN Silicon RF Transistor 60V@2A, 4W Minimum ~ 27MHz. MD-34 (TO-39F) Package (NTE224)Specified 12 Volt, 27MHz Characteristics:Collector Base Voltage, Vcbo: 60VCollector-Emitter Voltage Vcev: 60VEmitter Base Voltage, Vebo: 2.5VCollector Current Ic: 2

$5.09 $8.49

ECG224 NPN Silicon RF Transistor 60V@2A, 4W Minimum ~ 27MHz. MD-34 (TO-39F) Package (NTE224)

Specified 12 Volt, 27MHz Characteristics:

Collector Base Voltage, Vcbo: 60V
Collector-Emitter Voltage Vcev: 60V
Emitter Base Voltage, Vebo: 2.5V
Collector Current Ic: 2A
Output Power, Po: 4 Watts Minimum, 5 Watts Typical
Total Device Dissapation, Pd: 10W
DC Current Gain, hFE: 60 Typical
Amplifier Power Gain: 11.5dB Minimum
Package/Case: MD-34 (TO-39F)
Replaces NTE224, SK3049, GE-46
