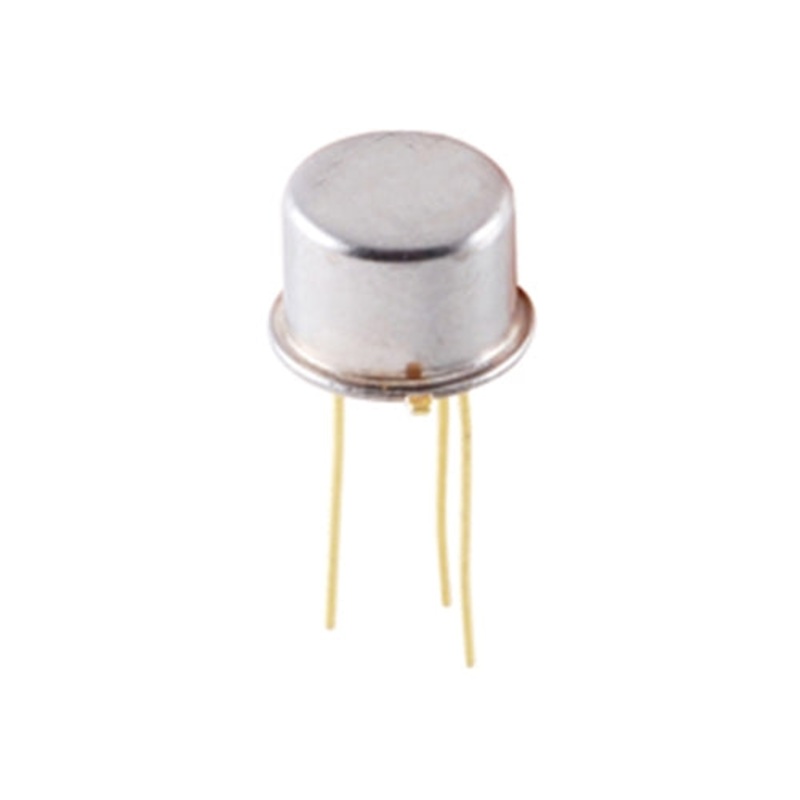

ECG195A NPN Silicon CB RF Power Amplifier/Driver Transistor [email protected], 3.5W ~ 27MHz. TO-39 Package (NTE195A)

The NTE195A is designed primarily for use in large signal output amplifier stages. Intended for usein Citizen Band communications equipment operating to 30MHz. High breakdown voltages allow ahigh percentage of up modulation in AM circuits.

Specified 12 Volt, 50MHz Characteristics:

• Collector Base Voltage, Vcbo: 70V
• Collector Emitter Voltage Vces: 70V
• Emitter Base Voltage, Vebo: 4V
• Collector Current Ic: 1.5A
• Output Power, Po: 3.5 Watts Minimum
• Total Device Dissapation, Ptot: 8W
• Amplifier Power Gain: 10dB Minimum
• Case: TO-39
• Replaces NTE195A
