DRV8825 Stepper Motor Driver Module

Easy-to-Use Stepper Motor Driver for 3D Printers and More

The DRV8825 stepper motor driver module is a versatile, user-friendly solution for controlling stepper motors in a wide variety of projects. Whether you’re upgrading your 3D printer, building a CNC machine, or working on an Arduino robotics project, this stepper motor driver delivers reliable, high-performance results.

Higher Power and Enhanced Compatibility

This module is a drop-in replacement for the A4988 stepper motor driver commonly found on 3D printer control boards like RAMPS. The DRV8825 offers higher current capability, supporting up to 2.2A per phase (with adequate cooling) and a wide operating voltage from 8.2V to 45V DC.

Adjustable Features and Protection

The DRV8825 driver makes setup simple thanks to its adjustable current limiting, set via an on-board potentiometer. Built-in safety features include over-temperature protection, shorted load protection, and over-current protection, helping safeguard your electronics and making it suitable for beginners and experts alike.

Precision Microstepping Control

Enjoy smooth and precise motor movement with 6 selectable microstepping resolutions, up to an ultra-fine 1/32-step. This means smoother motion and more accurate positioning for your motors. The module works with both 3.3V and 5V logic levels, making it ideal for use with Arduino and other popular microcontrollers.

Technical Specifications

• Model: DRV8825 Stepper Motor Driver Module (Vetco Product ID: VUPN8407)
• Input voltage: 8.2V 45V DC
• Maximum current: 2.2A per phase (requires heatsink and airflow above 1.4A)
• Microstepping: Full, 1/2, 1/4, 1/8, 1/16, 1/32
• Current adjustment: Onboard potentiometer
• Compatibility: 3.3V & 5V logic (Arduino, RAMPS, 3D printer boards, CNC, etc.)
• Protection: Over-temperature, over-current, shorted load

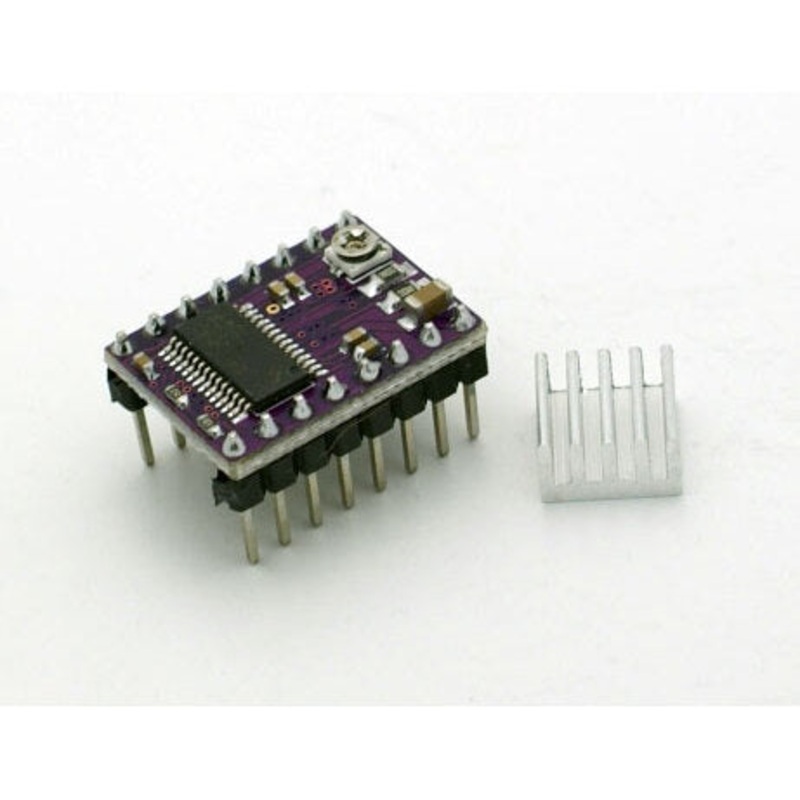

• Includes: 1 x DRV8825 stepper motor driver module, small heatsink (adhesive not included)

Upgrade Your Stepper Motor Projects

The DRV8825 stepper motor driver is an excellent choice for anyone looking for an easy-to-use, high-precision stepper motor controller for 3D printers, CNC machines, and DIY electronics projects. Get smoother motion, higher power, and reliable protection in your builds today!
