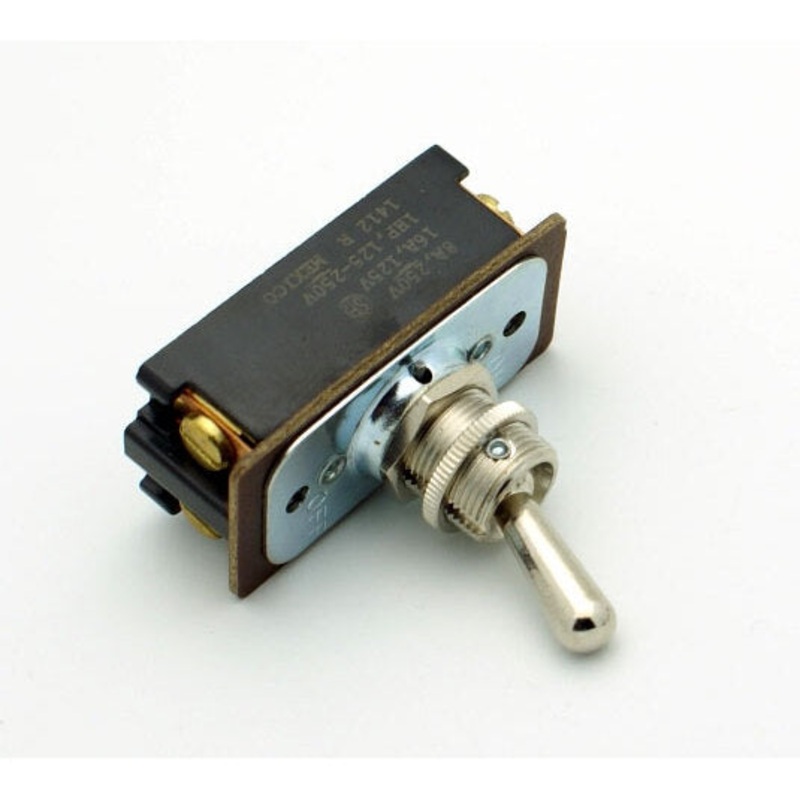

DPST Bat Handle Toggle Switch On-Off 16A Easy, Reliable Power Control
Simple On-Off Operation with DPST Toggle Switch
Control your devices with confidence using this easy-to-use DPST bat handle toggle switch. With straightforward ON-OFF action, this double pole single throw switch is perfect for homes, workshops, garages, and DIY electrical projects.
Designed for Low-Profile & Tight Spaces
This low-profile 16A toggle switch features terminals at each end, not the bottom, making it ideal for mounting in tight or low-clearance spaces where standard switches just wont fit. Its compact design allows more flexibility when installing into panels or enclosures.
Heavy-Duty, Reliable Performance
- Current Rating: 16A at 125VAC, 8A at 250VAC, 1 HP
- Circuit Type: DPST (Double Pole Single Throw) controls two circuits at once
- Handle Style: Classic bat handle for firm, comfortable switching
- Terminal Style: Screw terminals simple, secure wire connection
- Mounting Hole Size: 15/32″ (fits standard panels)
- Max Panel Thickness: 0.35″
- Dimensions: 1.77″ L x 0.84″ W x 0.65″ H
Easy to Install Perfect for DIYers
This bat handle toggle switch is built for straightforward installation. The screw terminal connections make wiring fast and reliable, whether youre replacing an old DPST toggle switch or adding a new one to your project box.
Great for panel mount use and versatile enough for new builds or repairs on heavy-duty appliances, machinery, lighting, or custom electronics.
Product Details
- Action: ON-OFF
- Type: Double Pole Single Throw (DPST)
- Current: 16A @ 125VAC, 8A @ 250VAC
- Mounting: Panel mount, 15/32″ hole
- Hillman part number: 393214
- Includes: 1 toggle switch
Notes and Warnings
- Check your applications voltage and current requirements before installation.
- Not suitable for wet or outdoor use without additional weatherproofing.
- Always disconnect power before wiring any electrical toggle switch.
