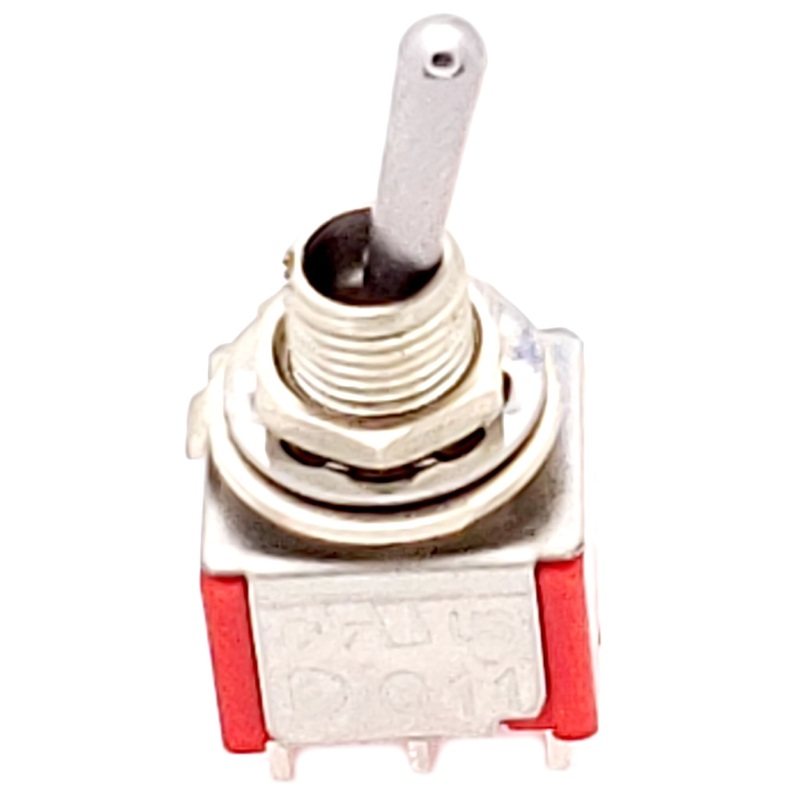

PH-30-10012B DPDT On-On Toggle Switch, 6-Pin, 5A @ 120VAC

The PH-30-10012B is a high-quality DPDT (Double Pole, Double Throw) On-On toggle switch, designed for panel-mounted applications where durability and reliable performance are essential. With a compact form factor, 6-pin configuration, and OnOn switching action, this miniature toggle switch is ideal for a wide range of electronics, audio routing, power control, and motor reversing circuits.

This 6-terminal DPDT switch is engineered with brass quick-connect solder terminals for secure connections and simplified installation. The OnOn contact configuration makes it perfect for switching between two separate loads, directions, or signal pathscommonly used in DC motor polarity reversal, amplifier signal switching, and control panel toggles.

Its electrical rating of 5A @ 120VAC supports low- to moderate-power switching applications, while the robust toggle lever ensures long-term durability and mechanical reliability. The panel mount bushing allows for firm, threaded mounting through metal or plastic enclosures with a locknut and washer for stability.

Product Features

• DPDT OnOn switch 6 terminals (2 poles, 2 throws per pole)

• Miniature toggle lever smooth action and positive detent

• Electrical rating: 5A @ 120VAC / 2A @ 250VAC

• Mechanical life: >10,000 toggle cycles

• Panel mount configuration with threaded bushing

• Brass solder lug terminals quick-connect ready

• Coin silver alloy contacts with silver plate for low contact resistance

• Compact size fits tightly spaced panels and control boxes

Common Applications

• Motor reversing switches (DPDT wiring)

• Audio signal routing in amplifiers or pedalboards

• DIY electronics and robotics

• Power source toggling (e.g., battery vs external)

• Industrial control panels and user interface toggles

• Model railroading or hobby circuitry

This DPDT 6-pin switch supports a wide range of DIY, repair, and prototyping needs, making it a go-to component for makers, electricians, and technicians looking for dependable toggle actuation.

Technical Specifications

Whether you’re building a new control panel or replacing a worn toggle, the PH-30-10012B DPDT On-On switch is a compact, cost-effective solution with the performance you need. Its durable construction, reliable switching mechanism, and universal 6-pin layout make it ideal for almost any toggle-based circuit design.
