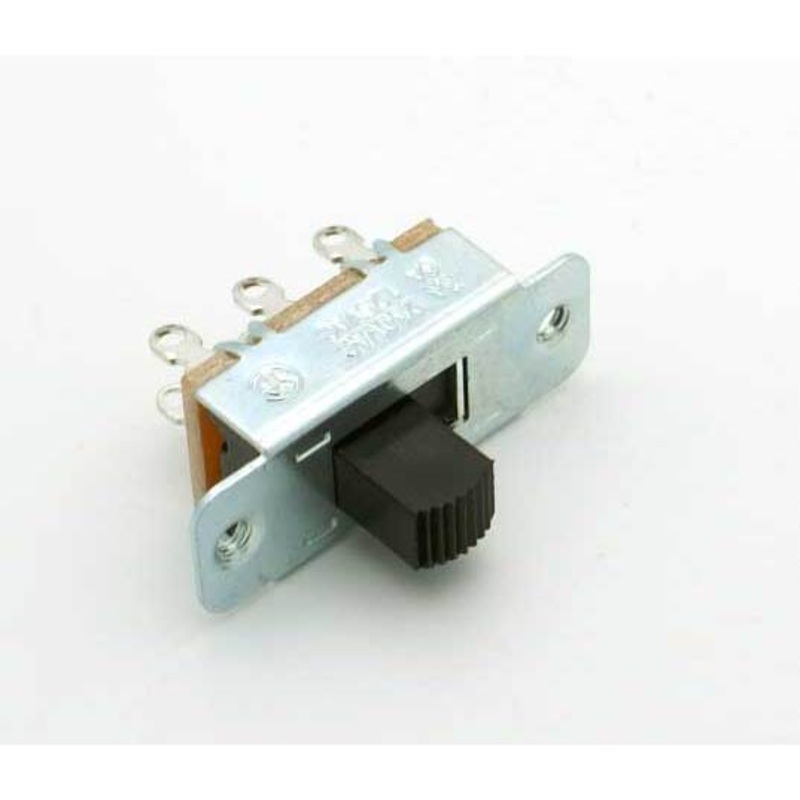

DPDT Slide Switch On-On (or Off) 6A by Philmore

Easy-to-Install DPDT Slide Switch for Everyday Projects

Upgrade your electronics project or repair your equipment with this reliable DPDT slide switch from Philmore. This double pole double throw slide switch is user-friendly and easy to mount, making it perfect for hobbyists, DIY electronics enthusiasts, and anyone needing a durable on-on slide switch or a simple on-off slide switch.

Simple Installation & Versatile Use

The integrated flange with tapped screw holes (for 4-40 screws not included) makes panel or project box mounting quick and secure. You can use this DPDT slide switch as an on-on switch for switching between two circuits, or wire it as an on-off switch by utilizing only two terminals. Its a great choice for replacing a broken or missing on/off switch or for adding power control to your next electronic build.

Product Features & Technical Specifications

• Manufacturer: Philmore
• Manufacturer Part Number: 30-9182B
• Configuration: Double Pole Double Throw (DPDT), On-On operation
• Terminal Type: Solder terminals (suitable for 20-24 AWG wire)
• Current Rating: 6A @ 125VAC, 3A @ 250VDC
• Initial Contact Resistance: 30 milliohms (max)
• Insulation Resistance: 100 megohms (min)
• Dielectric Strength: 1000V AC for 1 minute
• Contact Material: Bronze, silver plated
• Terminal Material: Copper, silver plated

Convenient Size & Robust Design

• Overall Dimensions: 13.3mm (W) x 22.65mm (L) x 24mm (H)
• Mounting Flange: 13.3mm x 35mm, screw holes spaced 30mm apart (center to center)
• Switch Actuator Height: 10mm
• Actuator Travel: 5mm

Notes & Warnings

• Screws for mounting are not included.
• Suitable for indoor electronics projects and repair work.

Perfect Choice for DIY Electronics

Whether youre building a custom control panel, repairing home audio equipment, or looking for a replacement slide switch with reliable 6A DPDT operation, this Philmore DPDT slide switch on-on is the ideal solution. Its straightforward design and clear labeling make wiring and installation a breeze for both beginners and experienced makers.
