We are sorry to announce that Customized Naked Camera is discontinued and will not be available for sales anymore. We recommend you buy its great alternative SMO 4K camera.

Do you really need a quad with the heavy ducts to carry on a GoPro for filming? No, what you need indeed is a super lightBEC board for your GoPro, make it lighter from 120g to 29g, and easier to install. So we decrease the used GoPro HERO6 camera and assemble it one by one to make the Naked Camera. If you have a GoPro HERO6/7, you can also choose theBEC boardandcaseto build one as our GoPro lite camera.

We bought the used GoPro HERO6 from the market, decrease and change it to this light version. Really sorry we could not provide enough GoPro Lite because of the limited quantity of used GoPro. Only 15pcs is available for retail now.

Note: The green LED on the BEC board of Naked camera may flash quickly, which may influence the normal indication of the red LED. But please don’t worry, It will not affect any function of Naked Camera.

Many thanks for Richrd Pappand those people who devoted their time and energy to the cinewhoop researching. Thanks for the FPV community to gather such awesome ideas. If you wanna know more about cinewhoop, click the link below to join us on Facebook.

>>NAKED Cinewhoop Community

Bullet Point

• GoProLite camera is specially designed formicro whoop drone like Beta85X and Beta95X which will be a perfect tool for FPV filming.Lightweight of 29g and easy to install on yourdrone.
• We decase the used GoPro HERO6 camera and assemble it one by one. The firmware is changed to 1.6 version and the default mode is in record 2.7K@60fps NTSC 4:3, NO image stabilization on.
• The BEC output voltage is 5V@2A, avoid the accident of power off which is caused by theinsufficient power supply for the FC board. Also, stock buttons and LED are integrated.
• With the pluggable connector, which is easier to connect with your flight controller for power supply and recording.
• Packed with theGoPro Lite BEC Board, carbon fiber board and 3D printing parts, easier installation and better to protect your GoPro motherboard.

Specification

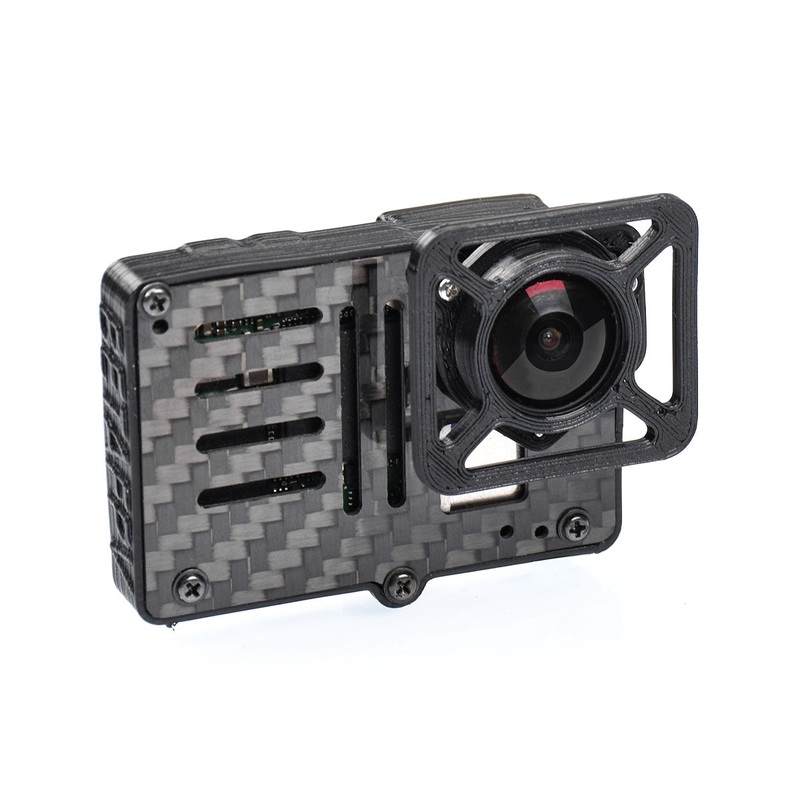

• Item: Customized Naked Camera
• Weight: 29.32g
• Output: 5V@2A
• Voltage: 2-4S
• Connector: GH 1.25 3P Connector

The default configuration in the GoPro Lite:

• GoPro version 1.6
• In record mode with 2.7K@60fps
• NTSC with 4:3
• WIFI is on. Image Stabilition is off
• English language

Diagram

Undernormaloperation, plug the GH1.25 connector intotheGoPro Lite camera firstly, then connect with the battery. The LED will flash once, then you should press the Power / Mode button once in a second to power on. The LED on the BEC board has the same status as the stock LED on the GoPro mainboard.

WIFI Connection

The GoPro WIFI is on in default. But if you wanna set up theGoPro via your phone, you need the help of the LCD monitor for the first connection. First, download the GoPro App on your phone. Then connect theTouch LCD Display connectorwith the original GoPro monitor, and press the Power Button to turn on the GoPro. Next, you could connect your phone with the GoPro following the manual.

Note: Only need once for the connection process above. The GoPro could connect with your phone without the LCD display next.

Note: The connectionis usually slow for the first time. The scan process takes about one minute.

How to Setup Remote Record

Pilot could use the switch on the radio transmitter to start/stop record via Betaflight Pinio function. The configuration depends on which FC board and Pin IO used. For more details about the configuration manual, please check the BEC board for help.

LED Status

Undernormaloperation, plug the GH1.25 connector intotheGoPro Lite camera firstly, then connect with the battery. The LED will flash once, then you should press the Power / Mode button once in a second to power on. The LED on the BEC board has the same status as the stock LED on the GoPro mainboard.For more details about the LED status, please check theBEC boardfor help.

ND Filter Holder

This ND Filter Holder fits perfectlyfor the standard Naked Camera ND filter(Not including).

Partsof Naked Camera Series

We know some of pilots might have a question abouthowto get the case for the naked GoPro or some might wanna grab the GoPro Lite Camera directly. Here we provide some more choices for your better installation.

• Beta95X for Naked Camera
• Beta85X for Naked Camera
• BEC Board for Naked Camera
• Case for Naked Camera
• Customized Naked Camera

>>Click here to check theSTL Files for Naked Camera Series.

How to DisassembleGoPro HERO6/8 Black

Special thanks toJONAH BLAESERwho provided the method ofdisassembling GoPro HERO6/8 Black. If you are interested, please check the link to know the specific steps to make your own naked GoPro.

GoPro HERO6 Black Disassembly Guide

We alsoprovided the method ofdisassembling GoPro HERO8 Black. If you are interested, please check the link.

GoPro HERO8 Black Disassembly Guide

Note:Do this at your own risk. You will lose your GoPros warranty and you may end up bricking thecamera if something goes wrong.This guide is not authorized by GoPro and your camera is not guaranteed to work afterward. will notbe held responsible for this action.

Package

• 1 * Customized Naked Camera
• 1 * GH1.25 Power Cable (80mm 30AWG)
• 1 *Pack of Screws
• 1 * Back LCD screen for first WIFI connection
