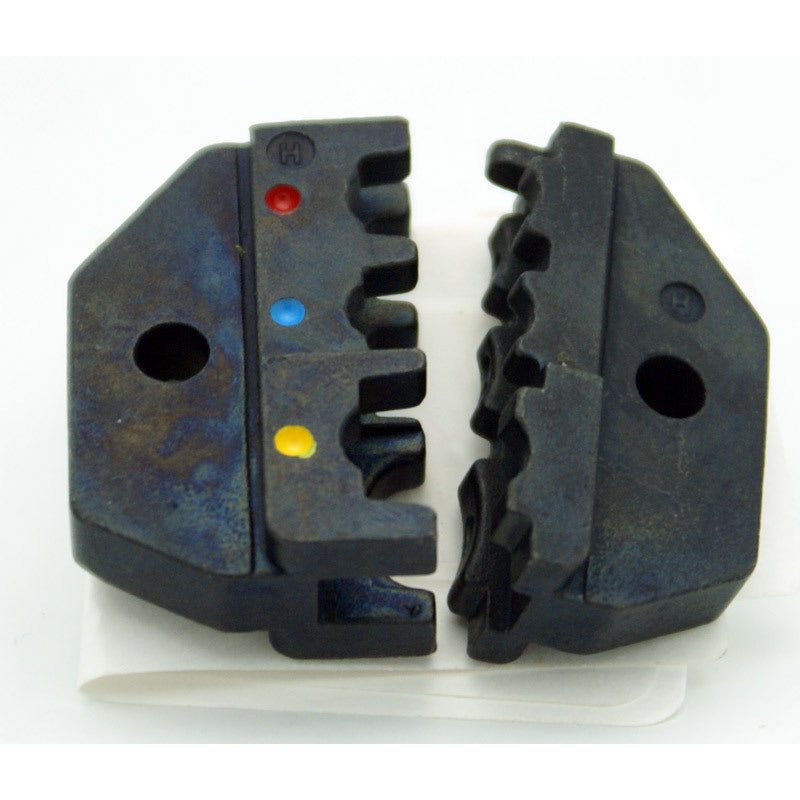

Easy-to-Use Crimp Die for Insulated Terminals (22-10 AWG)

Versatile Crimp Die for Insulated Terminals

Get reliable, professional results with this crimp die for insulated terminals, designed for 22-10 AWG wire sizes. Whether youre working on home DIY projects, automotive wiring, or simple repair jobs, this easy-to-use crimp die is a great addition to your tool kit.

Wide Compatibility and Simple Operation

This crimp die is compatible with the PAN-PHT-73-001 Ratcheting Crimp Tool (Part Number: HT-98D-606). Its perfect for insulated terminal connectors in three popular color-coded sizes:

• Red (22-18 AWG): For fine wires and small connections
• Blue (16-14 AWG): For general-purpose wiring
• Yellow (12-10 AWG): For thicker, heavy-duty wire jobs

Reliable Crimps for Copper Wire

Built for use with both stranded and solid copper wire, this insulated terminal crimp die ensures secure, long-lasting connections. Each crimp cavity is precision-machined for snug fits and even pressure, reducing the risk of loose or failed crimps.

Technical Details

• Fits insulated terminals: 22-10 AWG
• Color-coded cavities: Red (22-18 AWG), Blue (16-14 AWG), Yellow (12-10 AWG)
• Made for use with stranded and solid copper wire
• Compatible with PAN-PHT-73-001 Ratcheting Crimp Tool
• Part Number: HT-98D-606
• Includes: 1 Crimp Die

Why Choose This Insulated Terminal Crimp Die?

This multi-gauge crimp die for insulated connectors takes the guesswork out of crimping jobs. With its universal fit, color-coded markings, and durable construction, its a must-have for anyone who works with electrical wiring at home, in the garage, or on the job.
