BNC Male 3 Piece Crimp Connector for LMR400 Coax Cable

Reliable and Easy-to-Use BNC Male Crimp Connector for LMR400

Looking for a secure and professional way to connect LMR400 coaxial cable? Our BNC male 3 piece crimp connector is designed for simple installation and reliable performance. The classic BNC interface is trusted for clear signal transmission in home video setups, CCTV systems, and amateur radio projects.

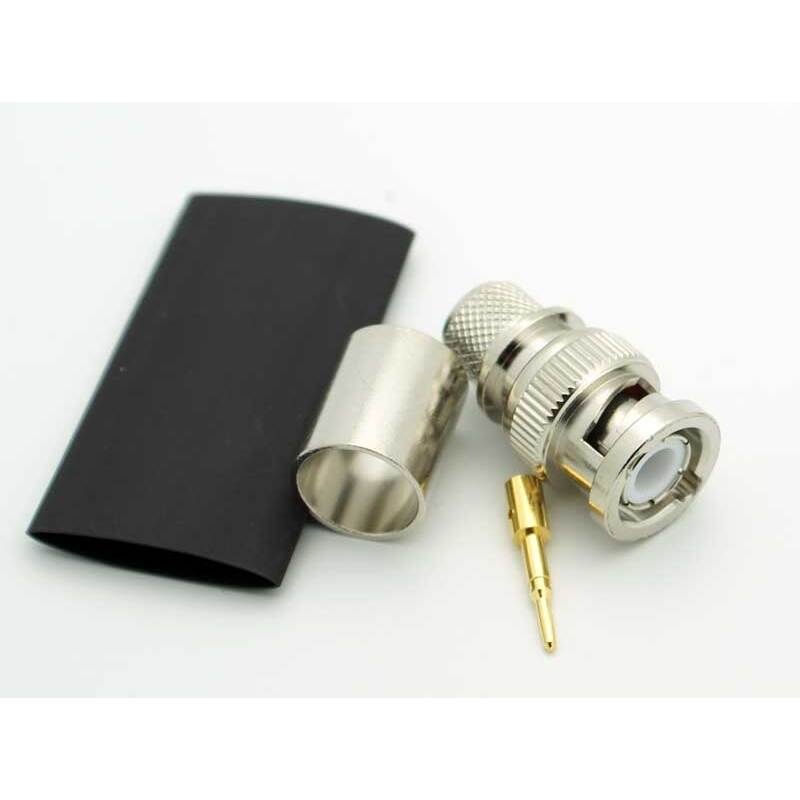

Features of the BNC Male 3 Piece Crimp Connector

• For use with LMR400 coaxial cable
• 3 piece design for easy assembly and a secure fit
• Center pin must be soldered for a robust electrical connection
• Connector body crimps onto coax using the included ferrule
• Quality nickel-plated finish for durability and corrosion resistance
• Knurled grips for easy handling and installation
• Gold-plated brass or copper conductors ensure excellent conductivity
• Suitable for inline/line mount applications

Technical Data

• Compatible Cable: LMR400 coax
• Connector Type: BNC male, 3 piece crimp style
• Center Pin: Solder-on to center conductor
• Ferrule: Crimp-on (included) for outer conductor
• Overall Dimensions: 1.33″ length x 0.49″ diameter
• Plating: Nickel-plated body, gold-plated contact pin
• Quantity: 1 connector per package

How to Use This BNC Male Crimp Connector for LMR400

1. Prepare the LMR400 coaxial cable by stripping it to reveal both the center conductor and the shielding.
2. Solder the gold-plated center pin onto the cables center conductor.
3. Slide the ferrule onto the cable.
4. Insert the center pin and cable into the main body of the connector.
5. Crimp the ferrule over the cables braid and connector body for a strong, lasting connection.

Choose this BNC male 3 piece crimp connector for a fast, secure, and reliable connection on your next LMR400 coax cable project.
