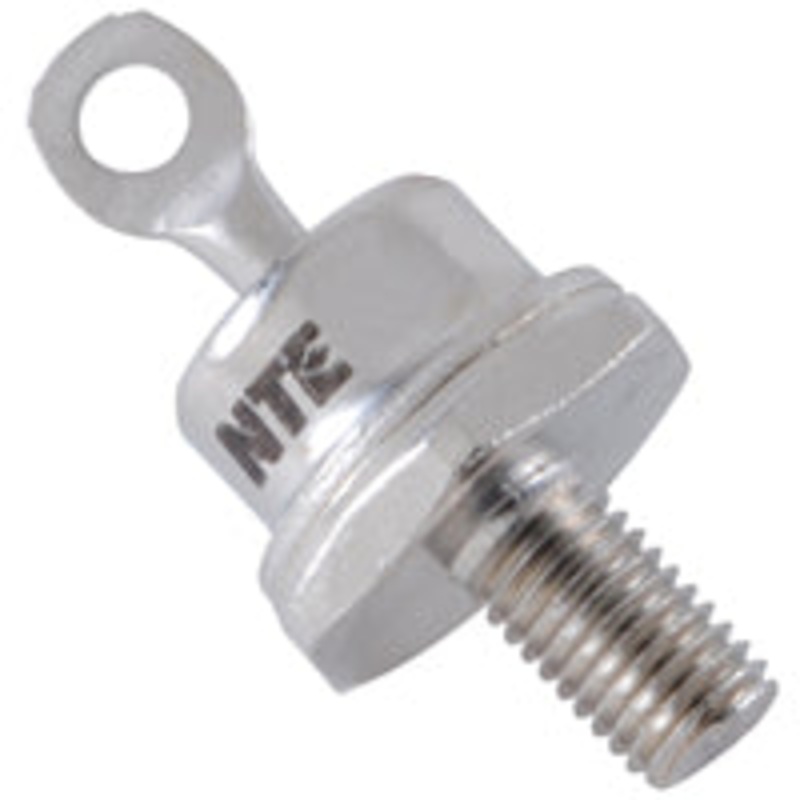

600V 85A Rectifier Diode DO5 Package

Powerful 600V 85A Rectifier Diode for High Current Applications

This high-performance 600V 85A rectifier diode in a classic DO5 package is a reliable solution for demanding power electronics. Engineered for both durability and efficiency, it is perfect for use in power supplies, battery chargers, DC motor drives, and other high current rectifier projects.

Features and Benefits

• High Voltage Rating: 600V Peak Reverse Voltage (PRV) for reliable protection against power surges
• High Current Capacity: 85A average forward current, ideal for heavy-duty power conversion
• DO5 Anode Case: Robust design for superior heat dissipation and long service life
• Easy to Install: Classic DO5 stud mount for secure, stable installation
• Single package quantity buy only what you need

Technical Specifications

• Part Number: NTE6077
• Maximum Repetitive Peak Reverse Voltage (PRV): 600V
• Average Forward Current (IF(avg)): 85A
• Package: DO5 (Anode Case)
• Polarity: Anode Case
• Package includes: 1 rectifier diode

Reliable and Versatile

This 600V 85A rectifier diode is perfect for a wide range of industrial and hobby projects, including power conversion, rectification, and protection circuits. The DO5 package makes it easy to mount in your existing setup. Dependable performance for todays high-demand electrical applications.

Need help choosing the right rectifier diode for your project? Contact for expert advice and support.

This part is the equivalent replacement for the following:

70HR25A, 70HR30A, 70HR40A, 70HR50A, 70HR60A, 80HFR40, 80HFR60, 80PFR40, 80PFR40W (Minor mechanical difference exists, but device will fit most applications.), 85HFR40, 85HFR60, 85R30, 85R40, 85R50, 85R60, 88HFR40 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), DS75-06B, ECG6077, F7H3R, F7K3R, FN37R60, NTE6077, R30740, R30760, R3725, R3730, R3735, R3740, R3745, R3750, R3760, SDH85R03P, SDH85R04P, SDH85R05P, SDH85R06P, SK7077, SK7077/6077, SW04PCR055, SW04PCR075, SW06PCR055, SW06PCR075
