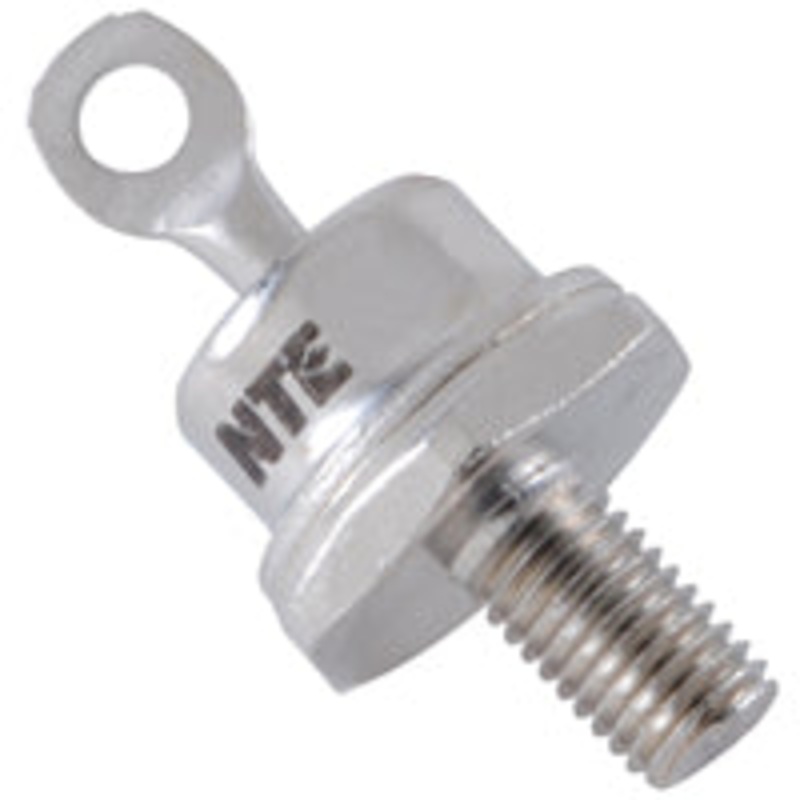

45 Volt 60A Schottky Rectifier Easy, Efficient Power Control

Powerful Schottky Rectifier for Everyday Electronics

Upgrade your circuits with this reliable 45 volt 60A Schottky Rectifier. Perfect for home electronics projects or DIY repairs, this Schottky diode offers fast switching, low forward voltage drop, and energy efficiency making it ideal for battery chargers, power supplies, inverters, and more.

Key Features & Benefits

• Low Forward Voltage Drop: Minimizes power loss and heat, ensuring cooler, more efficient operation.
• High Current Capacity: Handles up to 60 amps (60A) continuous, plus high surge currents for peace of mind during power spikes.
• Rugged DO-5 Package: Features a sturdy metal case for secure mounting and improved heat dissipation.
• Fast Recovery: The Schottky design allows for quick response in switching applications.
• Reliable Protection: Great for use as a polarity protection diode or freewheeling diode in motor circuits.
• Easy to Use: Straightforward two-lead design makes installation a breeze, even for beginners.

Technical Specifications

• Maximum Repetitive Reverse Voltage (VRRM): 45V
• Maximum Average Forward Current (IF(AV)): 60A
• Maximum Surge Current: 800A (8.3ms single half-sine wave)
• Typical Forward Voltage Drop (VF): 0.7V at 60A
• Operating Temperature Range: -65C to +150C
• Package Style: DO-5 (Stud Mount)
• Vetco Part Numbers: VET6094, WW6094 (Old NTE Part Number: NTE6094)
• Qty Per Package: 1

Why Choose a Schottky Rectifier?

Schottky rectifiers are known for their fast switching speed and very low voltage drop compared to standard diodes, which makes them great for projects where efficiency and heat management matter. Use this rectifier to upgrade power efficiency and protect sensitive electronics in your next build.

Ordering & Support

This part is sold individually. For current stock status or questions about using a Schottky rectifier in your project, reach out to Vetcos friendly team and get expert advice.

This part is the equivalent replacement for the following:

NTE6094, 1N5832, 1N5833, 1N5834, 1N6097, 1N6098, 1N6392 (Minor mechanical difference exists, but device will fit most applications.), 1SR72-30, 1SR72-40, 1SR73-30, 1SR73-40, 25MQ20, 25MQ25, 25MQ30, 30SB025S, 30SB025SA, 30SB02S, 30SB02SA, 30SB03S, 30SB03SA, 30SB04S, 30SB04SA, 3181947, 40MQ20, 40MQ25, 40MQ30, 40MQ40, 40SB02S, 40SB02SA, 40SB03S, 40SB03SA, 40SB04S, 40SB04SA, 50HQ020, 50HQ030, 50HQ035, 50HQ040, 50HQ045, 51HQ035, 51HQ040, 51HQ045, 51HQQ45, 52HQ030, 52HQ035, 52HQ040, 52HQ045, 60MQ30, 60MQ40, 60SB03S, 60SB04S, BYV22-30, BYV22-35, BYV22-40, BYV22-45, ECG6094, ERE81-004, ERG81-004, ERG81A-004, MBR4020, MBR4030, MBR4035, MBR4040, MBR6020, MBR6035, MBR6045, NSD6020, NSD6030, NSD6040, NSD6045, NTE6094, S25S2, S30S1S03, S30S1S04, S30S3, S30S3A, S30S4A, S35S2, S60S3, S60S4, SBR5375-3, SBR6020, SBR6025, SBR6030 (Minor mechanical difference exists, but device will fit most applications.), SBR6035 (Minor mechanical difference exists, but device will fit most applications.), SBR6040 (Minor mechanical difference exists, but device will fit most applications.), SBR6045 (Minor mechanical difference exists, but device will fit most applications.), SD51, SD5145, SD51(DO5), SD51(MOTO), SD51(MOTOROLA), SD-51(TRW), SI-51, SK9774, SK9774/6094, SSP3005, SSP3010, SSP3030, SSP3040, VSK4020, VSK4030, VSK4040, W2244
