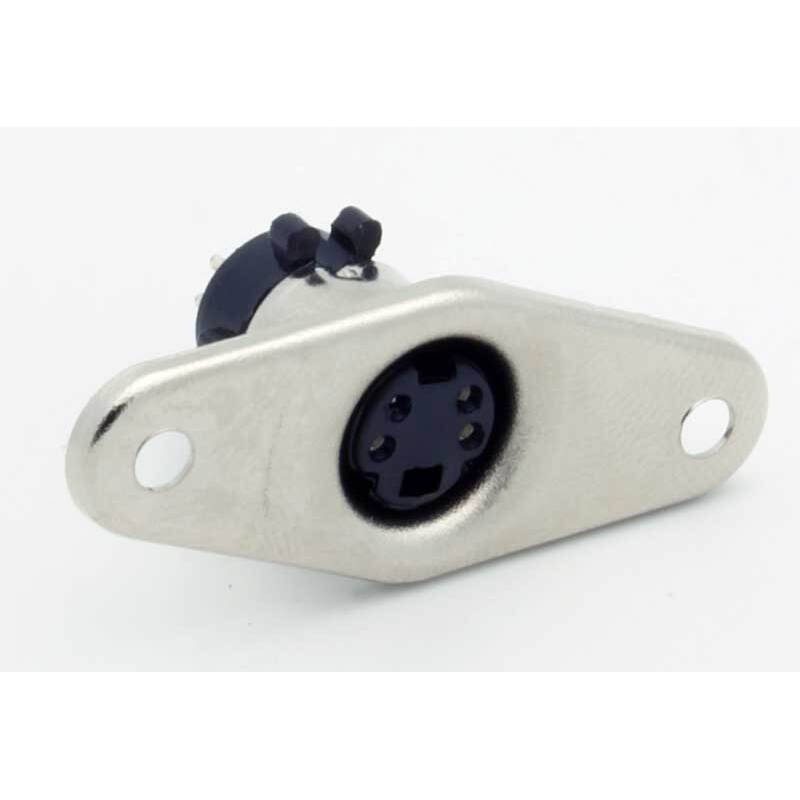

4 Pin Mini-DIN Female Panel Mount Jack

Reliable 4 Pin Mini-DIN Female Panel Mount Connector

Upgrade your projects with this easy-to-use 4 Pin Mini-DIN female panel mount jack. Designed for straightforward panel mounting, this female Mini-DIN connector is perfect for audio and video devices, custom electronics, DIY repairs, and more. With its flush mount style and solid build, youll get a secure and reliable connection every time.

Easy Installation & Versatile Applications

This panel mount Mini-DIN connector features solder cups that accept wire sizes up to 24 AWG, making wiring simple and hassle-freeeven for beginners. The standard Mini-DIN 4 pin configuration works perfectly in applications like vintage audio equipment, MIDI interfaces, game consoles, industrial controls, and home automation systems.

Technical Specifications

• Number of Contacts: 4 (standard 4 pin Mini-DIN jack)
• Connector Type: Female Mini-DIN, panel mount
• Lead Type: Solder cups for wire connections up to 24 AWG
• Mounting Style: Flush mount panel
• Mounting Hole Size: 13/32 diameter
• Mounting Screw Spacing: 1-3/16 (approximate)
• Overall Dimensions: 0.55 tall x 0.40 diameter with 1.5 mounting flange
• Rating: For low-voltage audio and data signals

Mini-DIN Connectors You Can Trust

offers a wide range of Mini-DIN connectors, including inline plugs, jacks, panel mount and PCB mount options. Whether youre doing quick repairs or building a new setup from scratch, our 4 pin Mini-DIN female panel mount jack provides solid performance and compatibility with standard Mini-DIN devices.

Why Choose This 4 Pin Mini-DIN Female Panel Mount Jack?

• Easy to solder and installeven for hobbyists and beginners
• Secure flush mount keeps connections protected
• Perfect fit for audio, MIDI, and control equipment
• Durable design for long-lasting use

Need other Mini-DIN connectors? Browse our selection for adapters, cable connectors, and more to finish your project with confidence.
