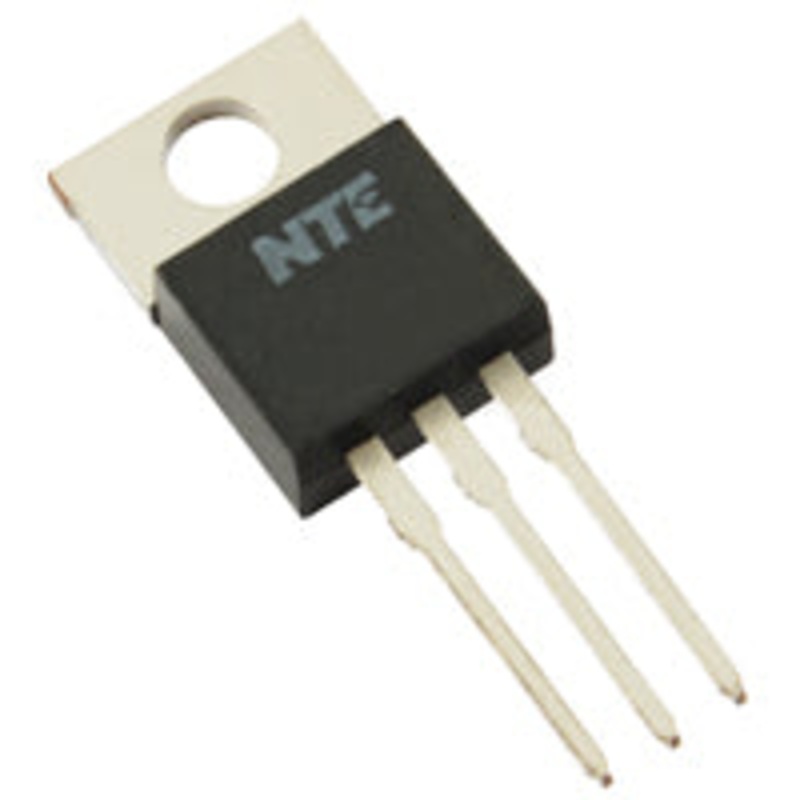

24V 1A Low Dropout Voltage Regulator 3-Pin TO-220

Reliable 24V Low Dropout Linear Voltage Regulator

This easy-to-use 24 volt low dropout voltage regulator delivers a stable 24V output at up to 1 amp of current. With its 3-pin TO-220 package, this voltage regulator is ideal for hobbyists, DIY electronics projects, and general power supply upgrades where dependable, efficient voltage regulation is needed.

Key Features of the 24V 1A LDO Regulator

• Output Voltage: 24V DC (positive voltage regulator)
• Maximum Output Current: 1A
• Dropout Voltage: Low dropout design for improved efficiency
• Package Type: 3-pin TO-220 (easy to mount and heat sink)
• Regulator Type: Linear, for smooth and noise-free power delivery
• Part Number: NTE1956
• Quantity per Package: 1

Simple Installation & Usage

The 3-pin TO-220 package makes installation straightforward. Use with standard soldering tools and easily attach a heat sink for added thermal management if needed. The pinout is compatible with most standard 24V low dropout voltage regulator footprintssimply connect input voltage, ground, and regulated output as labeled on your PCB or breadboard.

Perfect for a Variety of Projects

This 24V 1A voltage regulator is a great choice for powering sensors, motors, DIY gadgets, LED lighting strips, or upgrading unstable power supplies in your existing devices. Its low dropout characteristics mean you can achieve a steady 24V output even from supply voltages just slightly above 24V, which helps reduce unnecessary heat and wasted energy.

This part is the equivalent replacement for the following:

AN7742, ECG1956, LF240CV, NTE1956
