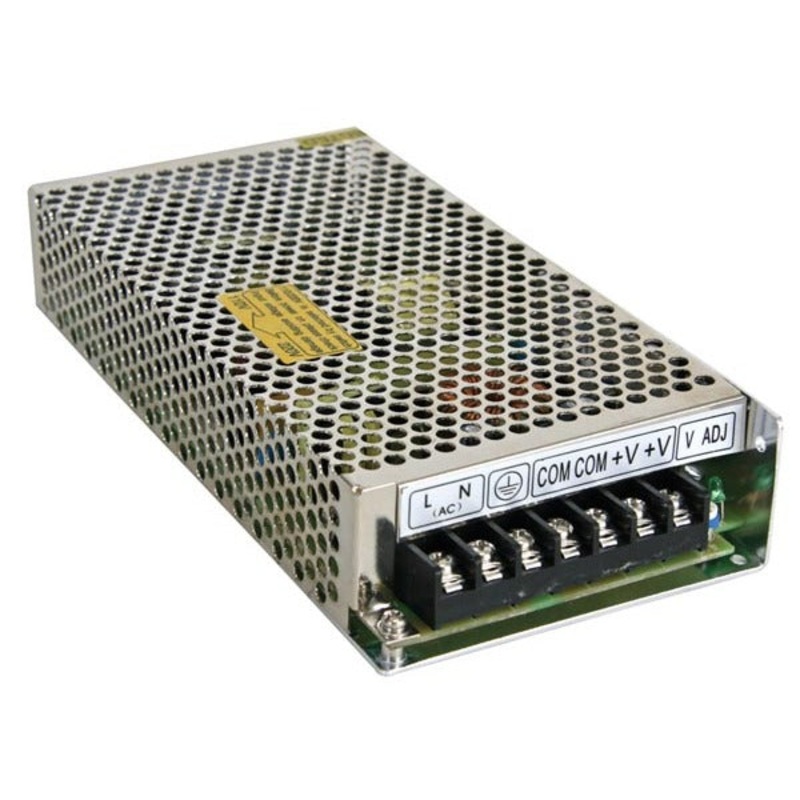

12V 5A Switching Power Supply 60 Watt Closed Frame

Reliable 12V DC 5A Power Supply for Everyday Electronics

This high-quality 12VDC 5A switching power supply delivers up to 60 watts of efficient, stable power for home and hobby electronics. The closed-frame design and screw terminal connections make installation simpleno soldering required. Perfect for LED strips, CCTV cameras, routers, 3D printers, and more.

Versatile AC-DC Power for Many Applications

Designed for easy integration, this 12V 5A power supply works with a wide input range of 85~264VAC (4763Hz), supporting both 110V and 220V mains. The voltage selection switch lets you match your local powerjust double-check its setting before plugging in. Its robust build provides dependable power for any 12V DC project that needs up to 5 Amps.

Essential Protections for Safety and Reliability

• Short Circuit Protection
• Overload Protection: 105%150% fold back current limiting with auto-recovery
• 100% full load burn-in tested for high reliability
• High efficiency operation (74%) with low heat output

Key Features of This 12V 5A Switching Power Supply

• Output Voltage: 12VDC 1% (adjustable 10%)
• Output Current: 05 Amps
• Maximum Output Power: 60 Watts
• Input Voltage: 85~264VAC (110 or 220V compatible)
• Input Inrush Current: 15A @ 110VAC
• Operating Humidity: 20%90% RH (non-condensing)
• Working Temperature Ranges:
  • -10C ~ 0C: Up to 80% load
  • 0C ~ 50C: Full 100% load
  • 50C ~ 60C: Up to 60% load
• Connection Type: Screw terminal block
• Cooling: By free air convection (no fan required)
• Weight: 20.45 oz
• Withstand Voltage:
  • I/P – O/P: 1.5 kVAC (1 min)
  • I/P – FG: 0.5 kVAC (1 min)

Easy to Use and Built for Home Projects

Featuring simple screw connections, this closed frame switching power supply is straightforward to install in project enclosures or on a workbench. Cooling is handled by free air convectionno noisy fan. Its burn-in tested for reliability and includes all critical overload and short circuit protections for safe DIY use.

Important Note

Please ensure the voltage selection switch is set correctly for your region (110V or 220V) before powering on. Incorrect settings may damage the power supply. Vetco cannot be responsible for damage due to incorrect voltage selection.

Whats Included

• 1 x 12V DC 5A (60W) Switching Power Supply (closed frame)
• Connectors and power cord not included.
• Replaces part number: PSIN10012N
