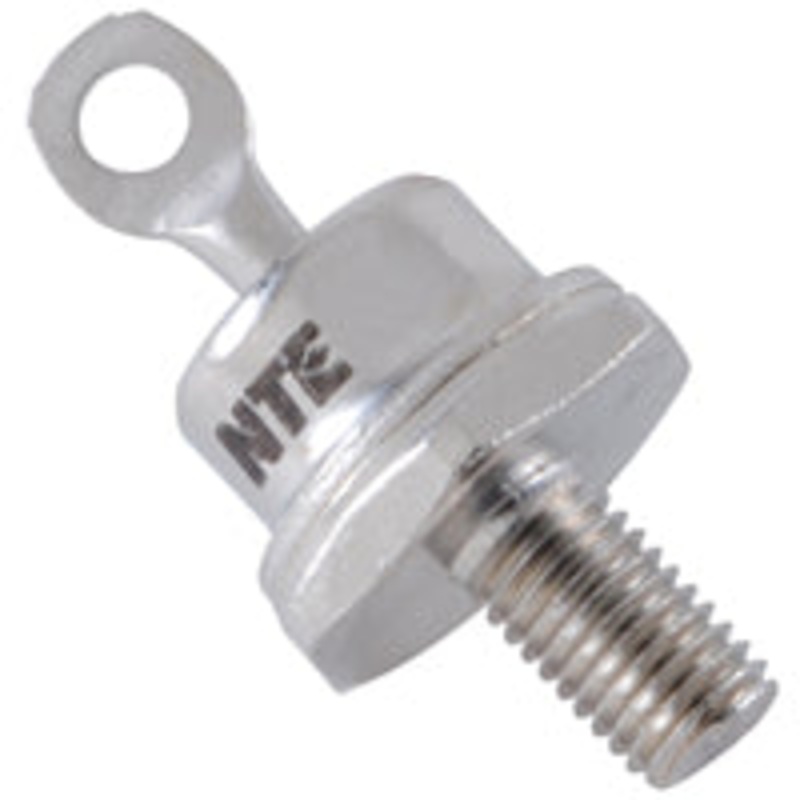

1000 Volt 85A Fast Recovery Rectifier Diode (DO5 Package)

Powerful and Reliable Fast Recovery Rectifier

The 1000V 85A fast recovery rectifier is designed to handle high voltage and high current applications with ease. Whether youre upgrading power supplies, repairing amplifiers, or building custom projects, this fast recovery diode delivers reliable performance and long-lasting durability.

Easy-to-Use High Voltage Rectifier for Everyday Projects

This rectifier diode is ideal for everyday users looking for a straightforward replacement or upgrade for worn-out or failing diodes. Featuring a fast recovery time, it minimizes energy loss and helps protect your circuits from surges.

Key Features and Benefits

• High Voltage Capability: Supports up to 1000 volts (PRV), making it suitable for demanding power electronics.
• High Current Handling: Rated for up to 85 amps, perfect for robust power conversion and rectification.
• Fast Recovery: Fast recovery rectifier helps improve efficiency and reduces noise in sensitive circuits.
• DO5 Package: Sturdy metal case for easier mounting and dependable heat dissipation.
• Packaged Individually: Each order includes 1 rectifier diode so you get exactly what you need.

Technical Specifications

• Part Number: NTE6047
• Peak Reverse Voltage (PRV): 1000 Volts
• Average Forward Current (IO): 85 Amps
• Case Type: DO5
• Recovery Time: Fast recovery
• Polarity: Anode case (AK)
• Quantity per Package: 1

Where to Use This 85A Fast Recovery Diode?

This high voltage, high current rectifier is perfect for:

• Power supply repairs and upgrades
• Solar and inverter projects
• Electric motor and generator builds
• High-power audio amplifier service
• General electronics repairs needing a robust replacement

Choose this fast recovery rectifier for hassle-free installation and reliable circuit protection. If you need help selecting the right high voltage rectifier, our expert team is ready to assist!

This part is the equivalent replacement for the following:

70HFLR100S05, 70HFLR100S10, 70HFLR80S05, 70HFLR80S10, 85HFLR100S05, 85HFLR100S10, 85HFLR80S05, 85HFLR80S10, CH2016, DSD35-08A, DSD35-10A, DSD51-06A, DSD51-08A, DSD51-10A, DSD71-08A, DSD71-10A, ECG6047, NTE6047, SDL70R08PS05, SDL70R08PS10, SDL70R10PS05, SDL70R10PS10, SDL85R08PS05, SDL85R08PS10, SDL85R10PS05, SDL85R10PS10, SKN2F50/08UNF, SKN2F50/10 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), SKN2F50/10UNF, SM08PCR0, SM08PCR070-1, SM08PCR070-2, SM08PCR074, SM10PCR0, SM10PCR070-1, SM10PCR070-2, SM10PCR074
