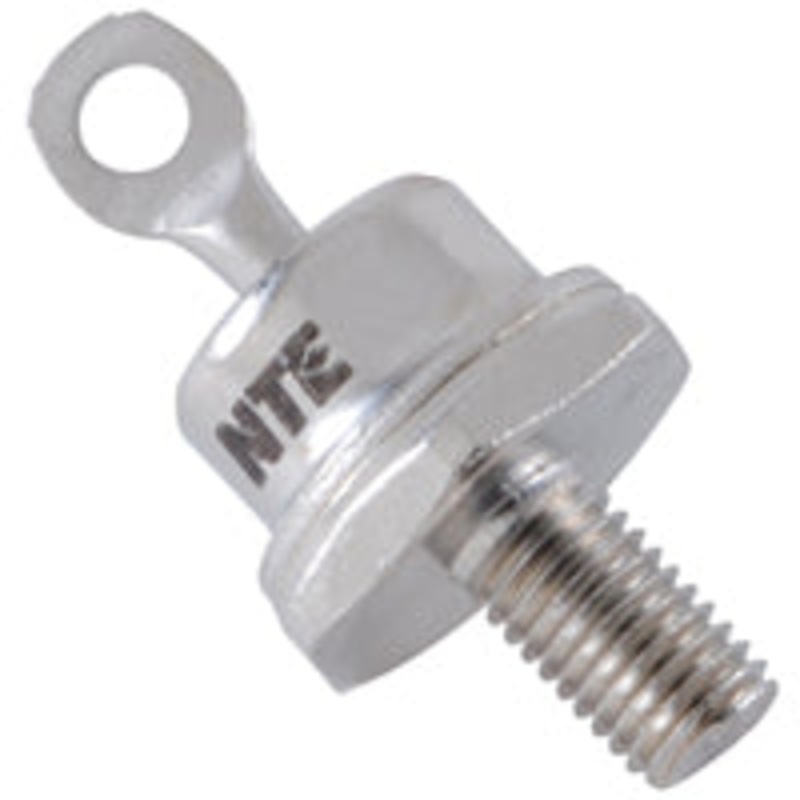

Reliable 1000V 70A Rectifier DO5 Stud Mount Silicon Diode

High Voltage, High Current Rectifier for Everyday Projects

Upgrade your power supply or repair electronics with this dependable 1000V 70A rectifier in a DO5 stud mount package. Designed for everyday consumers, this silicon rectifier diode delivers strong, efficient performance in a variety of high-voltage and high-current applications. Whether you are building or upgrading power supplies, battery chargers, or industrial equipment, this rectifier is easy to install and built to last.

Key Features of the 1000V 70A Rectifier (NTE6072)

• Maximum Repetitive Reverse Voltage (PRV): 1000 Volts
• Maximum Average Forward Current: 70 Amps
• Package Type: DO5 stud mount for secure, efficient heat dissipation
• Polarity: Cathode case configuration
• Silicon Material: Delivers reliable performance and long life
• Easy Installation: Stud mount design for fast, secure mounting to chassis or heat sinks

Perfect for Home and Workshop Use

This stud mount 1000V 70A rectifier is ideal for everyday DIY projects and repairs. It handles demanding power conversion needs with easemaking it great for automotive use, welding equipment, industrial power supplies, and backup systems. Its robust construction and high current rating ensure dependable results, even in tough conditions.

Technical Data

• Reverse Voltage (VRRM): 1000V
• Forward Current (IF(AV)): 70A
• Case: DO5 (stud mount, cathode case)
• Silicon Rectifier: Standard, high-efficiency design
• Part Number: NTE6072
• Quantity Per Package: 1

Why Choose this High-Current Rectifier?

Enjoy peace of mind with reliable, cost-effective rectification for any high-power application. The 1000V 70A rectifier offers strong protection against voltage spikes and can handle both industrial and consumer-grade repairs. Its proven design ensures long-term durability and easy integration into most existing setups.

This part is the equivalent replacement for the following:

1S1615, 25H100, 25H100A, 25H90, 25H90A, 416V, 416Z, 435V, 435Z, 70H100, 70H100A, 70H90, 70H90A, 70HF100, 73HF100 (May not be an exact mechanical or electrical equivalent. However, it will provide an acceptable substitute in the majority of typical applications.), A77P(DIODE), CH1212, CXL6072, ECG6072, F6P3, GE-5140, NTE6072, PH70-1000, R4040970, R4041070, R4101070, R4140970, R4141070, S306100, S35100, S36100, S3690, SDH70N09P, SDH70N10P, SK7272, SK7272/6072, SR50A-20S, SR70C-20S, ST11100P, SW10PCN040
